CVCO55CC-0777-0880

Overview

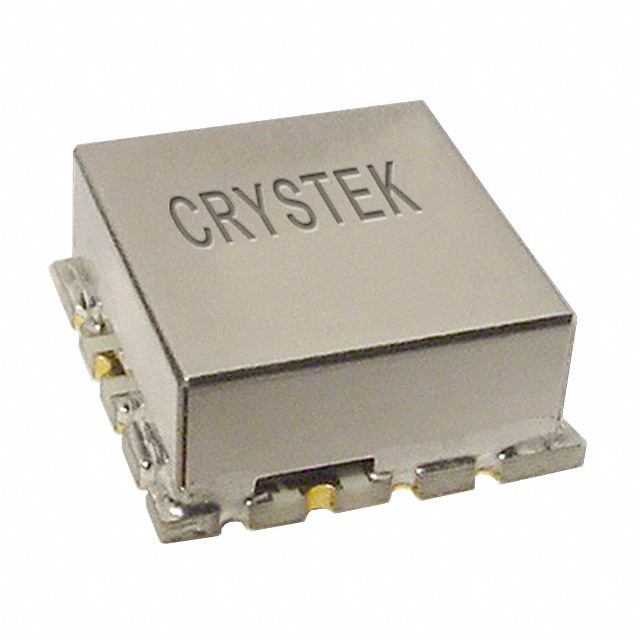

The CVCO55CC-0777-0880 is a Voltage Controlled Oscillator (VCO) manufactured by Crystek Corporation. It operates with a center frequency of 828.5 MHz and supports a tuning voltage range of 0.1 V to 4.9 V. The device delivers an output power of -4.0 ±3 dBm and exhibits a typical second harmonic level of -15 dBc. It is housed in a 12.7 x 12.7 mm package.

Feature Summary

• Voltage-controlled oscillation capability within specified tuning voltage limits
• Designed for microwave frequency generation applications
• Integrated harmonic suppression characteristics

Applications

• Microwave communication systems
• Frequency synthesis circuits
• Test and measurement equipment

Procurement Notes

Verify the specific part number CVCO55CC-0777-0880 against official Crystek documentation to confirm electrical parameters such as center frequency, tuning range, and output power. Ensure compatibility with system voltage requirements and mechanical footprint constraints before integration.

Selection Notes

Select this component when a fixed center frequency near 828.5 MHz is required with voltage tuning capabilities. Consider the output power level and harmonic performance relative to downstream circuit sensitivity. Verify that the operating voltage range aligns with available control signals.

Part Context

This model belongs to the CVCO55 series of Voltage Controlled Oscillators produced by Crystek Microwave. The series provides various frequency options tailored for microwave industry applications, utilizing quartz-based resonator technology for stable frequency generation.

Replacement Considerations

Consult official Crystek substitution guides for compatible alternatives. No public substitute part numbers are confirmed in available documentation.
