CWF1610-2R2K

Fixed Inductors Overview

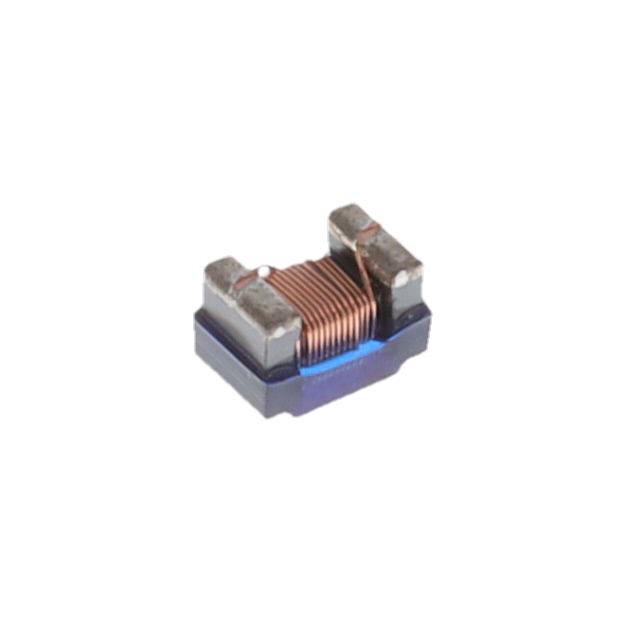

The Bourns CWF1610-2R2K is a surface-mount RF inductor from the CWF1610 series, designed for high-frequency applications. It features a wirewound construction with a ferrite core and measures 1.6 x 1 x 1 mm (0603 metric). The component provides an inductance of 2.2 µH with a tolerance of ±10%. It supports a maximum DC current of 580 mA and has a DC resistance of 560 mΩ. Operating temperatures range from -40°C to +125°C.

Fixed Inductors Feature Summary

• Wirewound design utilizing a ferrite core for stable RF performance
• Compact 0603 surface-mount footprint suitable for space-constrained PCB layouts
• Semi-shielded construction to minimize electromagnetic interference

Fixed Inductors Applications

• RF circuit filtering
• Impedance matching networks
• High-frequency signal processing

Fixed Inductors Procurement Notes

Verify the specific ordering suffix 'K' corresponds to the required tape-and-reel packaging configuration. Confirm that the 560 mΩ DC resistance and 580 mA current rating align with the target circuit's thermal and power requirements. Ensure the semi-shielded characteristic meets the system's EMI constraints.

Fixed Inductors Selection Notes

Select this component when a compact 0603 form factor is required for RF inductance values around 2.2 µH. Consider the 580 mA saturation limit and the specific Q-factor characteristics at the operating frequency. Evaluate the temperature stability within the -40°C to +125°C range against environmental conditions.

Fixed Inductors Part Context

This part belongs to the Bourns CWF1610 series of RF inductors. The series offers various inductance values in a standardized 1.6 x 1 x 1 mm package. These components are engineered for general-purpose RF applications requiring reliable performance in small electronic devices.

Fixed Inductors Replacement Considerations

Consult official Bourns documentation for direct cross-reference equivalents. Verify that any substitute maintains identical 0603 dimensions, 2.2 µH nominal value, and comparable current handling capabilities.
