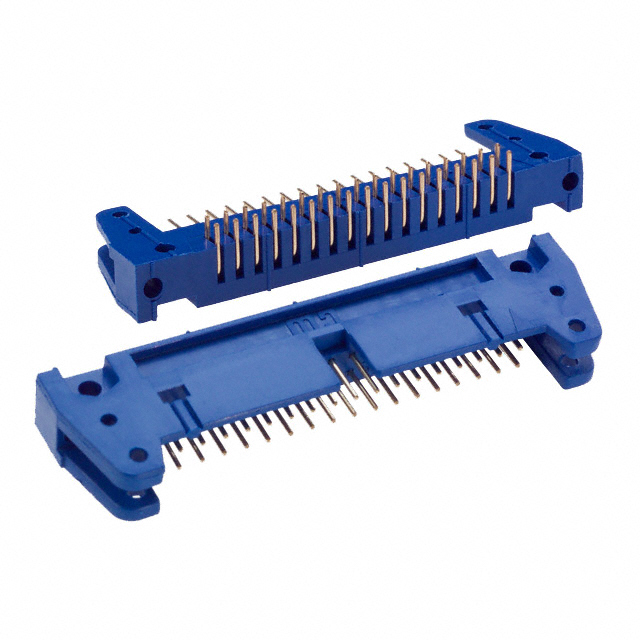

CWN-300-34-0000

$6.98

Description：CONN HEADER R/A 34POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk

SKU:08748cf1acf7 Category: Headers, Male Pins Brand: CW Industries

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CWN-300-34-0000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN HEADER R/A 34POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for CWN-300-34-0000

Description：CONN HEADER R/A 34POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：34
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：0.291" (7.40mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Nickel
Contact Material：Phosphor Bronze
Insulation Material：Thermoplastic
Features：Keying Slot, Mounting Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Blue
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for CWN-300-34-0000

CWN-300-34-0000

Headers, Male Pins Overview

The CWN-300-34-0000 is a rectangular connector header manufactured by CW Industries. It features 34 positions arranged in two rows with a 0.100" (2.54mm) pitch. The connector utilizes male pins with gold plating and is designed for right-angle surface mounting via solder termination. Constructed from thermoplastic material with nickel contacts, it includes a keying slot for orientation. This component belongs to the CWN series and is intended for board-to-board interconnection applications.

Headers, Male Pins Feature Summary

Right-angle pin configuration for compact PCB layout
Gold-plated contacts for reliable signal transmission
Keying slot ensures correct insertion alignment

Headers, Male Pins Applications

Board-to-board interconnections
General electronic circuit assembly
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix and contact finish against current datasheets, as manufacturing variations may exist. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer. Ensure compatibility with existing PCB footprints and mating connectors before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a right-angle header with 34 positions and 2.54mm spacing is required. Verify that the gold contact finish meets corrosion resistance needs. Ensure the thermoplastic housing material aligns with thermal requirements of the application environment.

Headers, Male Pins Part Context

This part belongs to the CWN series of rectangular headers from CW Industries. The series offers various position counts and row configurations. The CWN-300-34-0000 specifically provides a 34-position option with right-angle termination, distinguishing it from straight-mount variants within the same product family.
