CWN-300-40-0000

$7.94

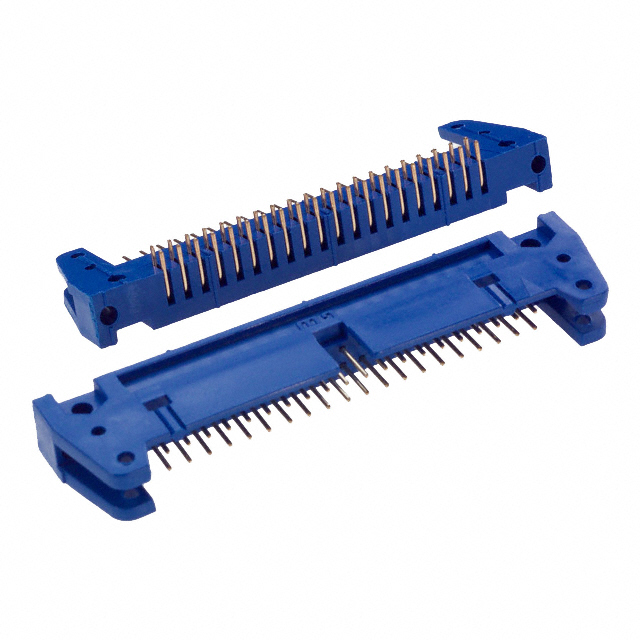

Description：CONN HEADER R/A 40POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk

SKU:8954d57164d0 Category: Headers, Male Pins Brand: CW Industries

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CWN-300-40-0000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN HEADER R/A 40POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for CWN-300-40-0000

Description：CONN HEADER R/A 40POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：0.291" (7.40mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Nickel
Contact Material：Phosphor Bronze
Insulation Material：Thermoplastic
Features：Keying Slot, Mounting Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Blue
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for CWN-300-40-0000

CWN-300-40-0000

Headers, Male Pins Overview

The CWN-300-40-0000 is a commercial header connector manufactured by CW Industries, designed for through-hole right-angle mounting. It features 40 positions arranged in a single row with a 0.100 inch (2.54mm) pitch. The connector utilizes male pin contacts and is intended for IDC cable applications. Key specifications include an operating temperature range of -55°C to +125°C and compliance with RoHS standards. This component belongs to the Headers & Wire Housings subcategory within rectangular connectors.

Headers, Male Pins Feature Summary

Right-angle through-hole mounting configuration for PCB integration
IDC termination style compatible with ribbon cables
Male pin contact type for header applications

Headers, Male Pins Applications

Industrial equipment interconnects
Aerospace wiring harnesses
Data center power applications

Headers, Male Pins Procurement Notes

Verify current availability status as inventory levels fluctuate. Confirm that the specific right-angle orientation matches the design requirements. Ensure compatibility with standard 0.100 inch pitch IDC cables. Check for any recent product change notices or end-of-life announcements from the manufacturer before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this model when a right-angle through-hole header is required for IDC connections. The 40-position count suits high-density signal routing. Verify that the single-row layout fits the board space constraints. Ensure the mating cable supports the specified temperature range and current ratings for the intended application environment.

Headers, Male Pins Part Context

This part falls under the commercial header series from CW Industries. It is categorized alongside other headers and wire housings. The product is distinct from vertical variants like the CWN-370 series due to its right-angle profile. It serves as a direct interface point for ribbon cable assemblies in electronic systems.
