CWN-300-50-0000

Headers, Male Pins Overview

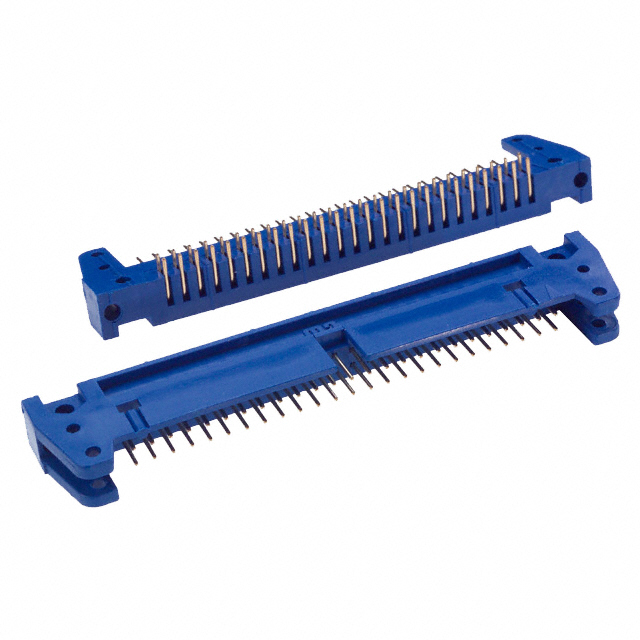

The CWN-300-50-0000 is a right-angle header connector from CW Industries, featuring 50 positions in a dual-row configuration. It utilizes a 2.54mm (0.100 inch) pitch and employs a solder termination method for through-hole mounting. The contacts are gold-plated phosphor bronze pins designed for reliable signal transmission. This component operates within a temperature range of -55°C to +125°C and meets UL94 V-0 flammability standards for the insulator.

Headers, Male Pins Feature Summary

• Right-angle board-to-board or board-to-wire connectivity design
• Gold-plated male pin contacts for corrosion resistance
• Through-hole solder termination for secure PCB attachment
• Dual-row layout with 2.54mm spacing

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Consumer electronics assembly boards
• Telecommunications equipment backplanes
• General-purpose circuit board expansion headers

Headers, Male Pins Procurement Notes

Verify the specific orientation and pin count against schematic requirements before integration. Confirm that the right-angle profile aligns with mechanical clearance constraints on the target assembly. Ensure compatibility with mating receptacles regarding contact length and insulation height specifications.

Headers, Male Pins Selection Notes

Select this model when a low-profile right-angle connection is necessary to save vertical space. The 50-position capacity supports high-density signal routing. Verify that the soldering process parameters accommodate the thermal mass of the 50-pin array without damaging the thermoplastic insulator during reflow.

Headers, Male Pins Part Context

This part belongs to the CWN series of rectangular connectors manufactured by CW Industries. The series offers various position counts and row configurations. The CWN-300 variant specifically denotes the right-angle header style, distinguishing it from vertical or surface-mount alternatives within the same product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 50-position, 2.54mm pitch right-angle headers from different manufacturers. Ensure equivalent electrical ratings and mechanical dimensions match. Cross-reference pinout definitions and mating interface tolerances to guarantee functional interchangeability.
