CWN-320-10-0000

Headers, Male Pins Overview

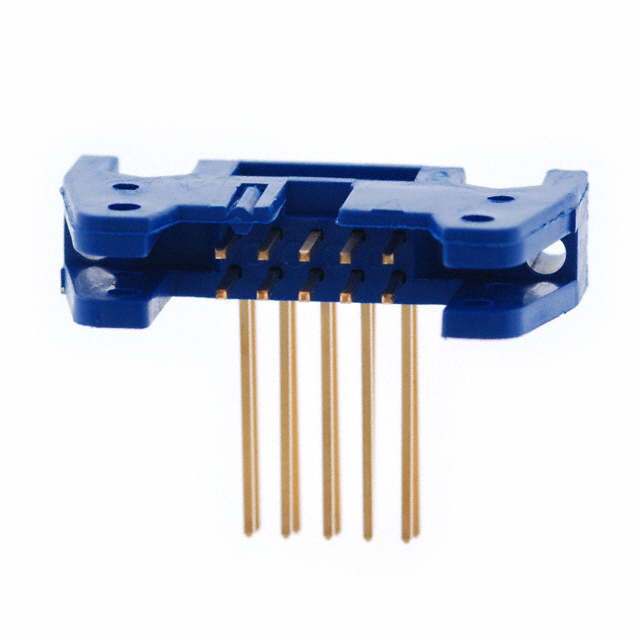

The CWN-320-10-0000 is a rectangular header connector manufactured by CW Industries, featuring 10 positions arranged in two rows. It utilizes a 0.100 inch (2.54mm) pitch and is designed for right-angle through-hole mounting. The contacts are male pins made of phosphor bronze with gold plating on the mating surface. This wire-to-board style connector supports wirewrap termination and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layouts
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Wirewrap termination method provides secure connections

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-wire assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official CW Industries documentation to confirm current availability status. Check for any product change notices or obsolescence alerts prior to procurement. Ensure compatibility with existing PCB footprints and mating connectors. Confirm that the right-angle orientation meets mechanical constraints.

Headers, Male Pins Selection Notes

Select this component when a right-angle, 10-position header with wirewrap termination is required. Verify that the 2.54mm pitch matches the target circuit design. Ensure the operating temperature range of -55°C to 125°C suits the application environment. Confirm that the male pin configuration aligns with the mating female housing requirements.

Headers, Male Pins Part Context

This part belongs to the CWN series of headers from CW Industries. It is specifically engineered for applications requiring robust wirewrap connections. The right-angle form factor distinguishes it from straight-mount alternatives within the same series.
