CWN-320-14-0000

Headers, Male Pins Overview

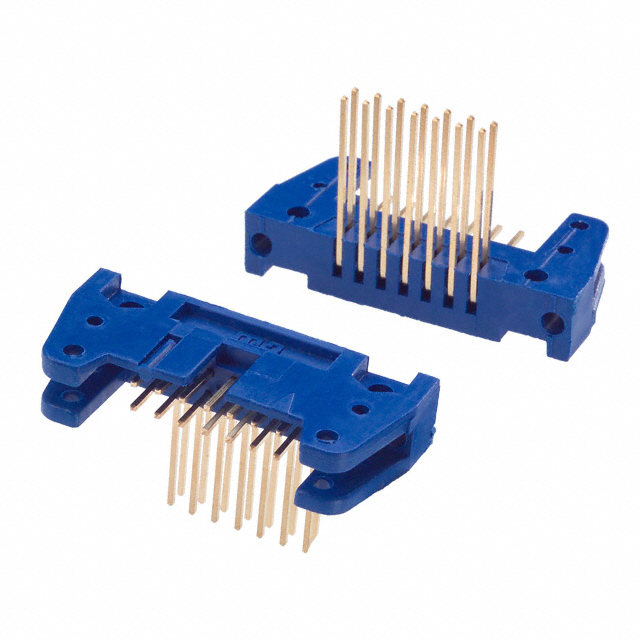

The CWN-320-14-0000 is a rectangular connector header manufactured by CW Industries. It features a male pin configuration designed for through-hole mounting on printed circuit boards. The component provides 14 positions with a standard 0.100-inch (2.54mm) centerline spacing. It utilizes a right-angle orientation to facilitate board-to-board or cable connections in space-constrained environments. The unit is constructed for wire wrap applications and complies with lead-free and RoHS standards, ensuring environmental safety and regulatory adherence for electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle design for compact PCB integration
• Through-hole mounting for secure mechanical stability
• Male pin configuration for mating receptacles

Headers, Male Pins Applications

• Wire wrap circuit assembly
• Board-to-board interconnection
• General electronic equipment headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official CW Industries documentation to confirm exact pin count and orientation. Ensure compatibility with mating female connectors regarding pitch and contact type. Confirm RoHS compliance status if required by project specifications. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header is required for through-hole implementation. The 2.54mm pitch suits standard digital and analog signal routing. Consider the physical profile and current rating requirements relative to the application load. Validate that the right-angle form factor aligns with the enclosure constraints and mating interface geometry.

Headers, Male Pins Part Context

This part belongs to the CWN series of rectangular connectors from CW Industries. The series offers various position counts and orientations to support diverse interconnect needs. The CWN-320-14-0000 specifically addresses the need for a 14-position right-angle solution. It serves as a standard interconnect element within broader electronic system architectures requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for equivalent right-angle male headers with matching 2.54mm pitch and 14 positions. Verify mechanical footprint and electrical characteristics before swapping manufacturers.
