CWN-320-16-0000

Headers, Male Pins Overview

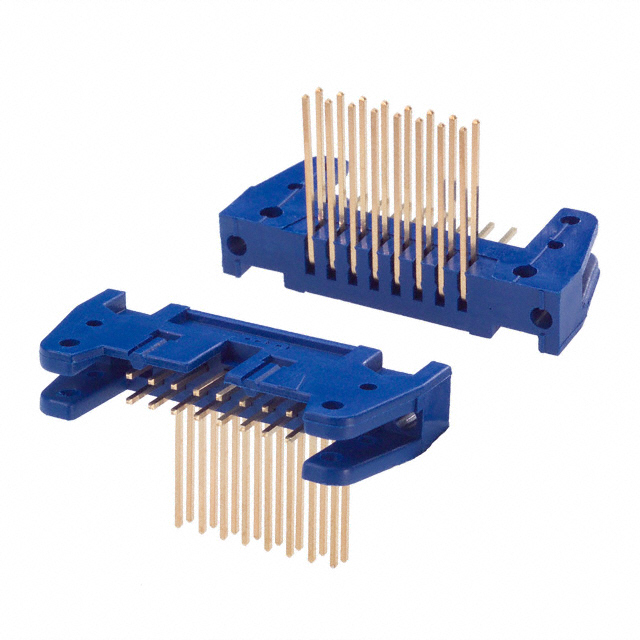

The CWN-320-16-0000 is a rectangular connector header manufactured by CW Industries, designed for board-to-cable or wire applications. It features a 16-position configuration with two rows and a 0.100 inch (2.54mm) pitch. The component utilizes male pins with a through-hole termination method and right-angle mounting style. Key electrical specifications include a rated current of 1A and an operating temperature range of -55°C to 125°C. The housing is constructed from thermoplastic material in blue color, meeting UL94 V-0 flammability ratings. Contact surfaces are gold-plated for mating interfaces.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for secure PCB attachment
• Gold-plated contact surfaces ensure reliable signal transmission
• Polarization keying prevents incorrect insertion during assembly

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• General electronic equipment harnesses

Headers, Male Pins Procurement Notes

Verify the obsolete status indicated by third-party distributors against official manufacturer documentation before procurement planning. Confirm if alternative series replacements are available from CW Industries. Ensure compatibility with existing PCB footprints and mating connectors. Check for any recent product change notices affecting specifications or availability.

Headers, Male Pins Selection Notes

Select this component when right-angle through-hole headers are required for low-current applications. Verify that the 16-pin count matches the circuit design requirements. Ensure the 2.54mm pitch aligns with the mating connector and PCB layout constraints. Consider the thermal rating and mechanical stability for the intended operational environment.

Headers, Male Pins Part Context

This part belongs to the CWN series of headers from CW Industries, characterized by wire wrap bulk construction. It serves as a standard interconnect solution for connecting cables or wires to printed circuit boards. The series typically offers various pin counts and configurations to support diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Third-party sources indicate scheduled obsolescence. Verify official discontinuation status. Consult CW Industries for direct replacement recommendations within the same series or compatible alternatives.
