CWN-320-20-0000

Headers, Male Pins Overview

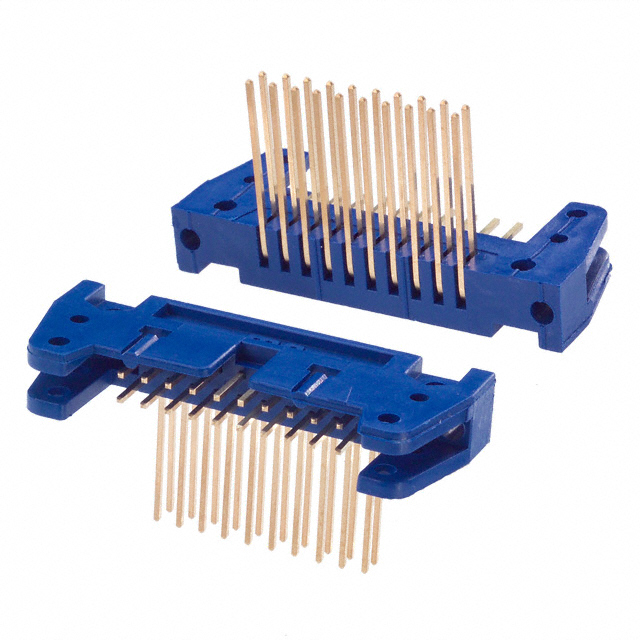

The CWN-320-20-0000 is a rectangular connector header manufactured by CW Industries, featuring 20 positions in a dual-row configuration. It utilizes a 0.100 inch (2.54 mm) pitch and is designed for right-angle through-hole mounting with wire wrap termination. The connector includes an insulating shield and incorporates keying slots and mounting flanges for secure assembly. Rated for operation between -55°C and +125°C, it supports a current rating of 1A per contact.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-cable or board-to-board connections
• Wire wrap termination ensures reliable electrical interconnection without soldering
• Integrated insulating shield provides protection against short circuits and contamination
• Keyed design prevents incorrect mating orientation during installation

Headers, Male Pins Applications

• Industrial control systems requiring robust wire wrap interconnects
• Telecommunications equipment infrastructure
• Test and measurement instrumentation assemblies
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific model suffix to confirm right-angle orientation and wire wrap termination compatibility. Ensure the receiving facility has appropriate handling procedures for components with fragile plastic flanges. Confirm that the target PCB layout accommodates the specified height and right-angle footprint requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when wire wrap termination is required instead of standard soldering methods. The right-angle form factor is suitable for applications where vertical clearance is limited but horizontal space allows for perpendicular insertion. Verify that the 1A current rating meets the circuit load requirements and that the 2.54mm pitch matches the mating connector specifications.

Headers, Male Pins Part Context

This part belongs to the CWN series of headers from CW Industries, which are characterized by their durable construction and versatile mounting options. The series offers various pin counts and configurations to support diverse electronic assembly needs. The CWN-320-20-0000 specifically addresses applications needing a 20-position right-angle interface with wire wrap capabilities.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 20-position count, 2.54mm pitch, right-angle orientation, and wire wrap termination style. Verify that any alternative component maintains identical mechanical dimensions and electrical ratings to ensure seamless integration without redesigning the host PCB.
