CWN-320-26-0000

Headers, Male Pins Overview

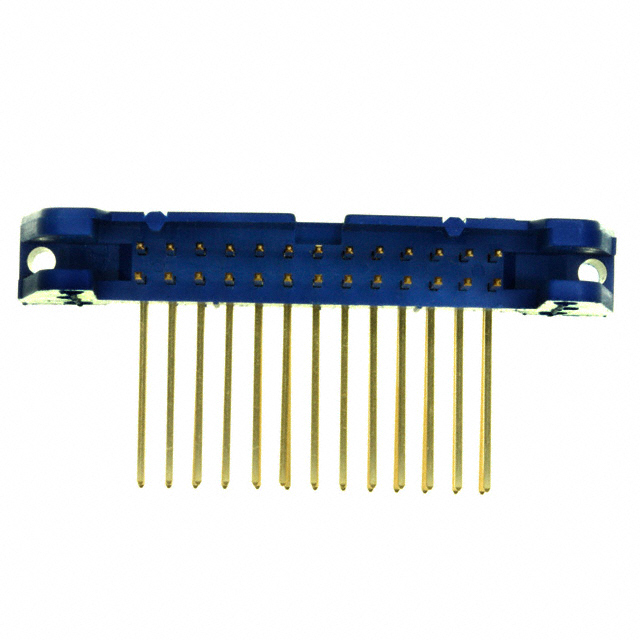

The CWN-320-26-0000 is a vertical header connector manufactured by CW Industries, featuring 26 positions arranged in two rows with a 0.100 inch (2.54mm) pitch. It utilizes phosphor bronze contacts with gold plating for mating surfaces and nickel plating for the tail, ensuring reliable electrical performance. The insulator is blue thermoplastic rated UL94 V-0, supporting an operating temperature range of -55°C to 125°C. Designed for through-hole mounting, it includes keying slots and mounting flanges for secure installation.

Headers, Male Pins Feature Summary

• Features keying slots and mounting flanges for precise alignment and secure board attachment
• Utilizes phosphor bronze contacts with gold-plated mating surfaces for corrosion resistance
• Constructed with blue thermoplastic insulation rated UL94 V-0 for fire safety

Headers, Male Pins Applications

• General electronic interconnections requiring high reliability
• Industrial control systems operating in extreme temperatures
• Consumer electronics assemblies needing secure board-to-board connections

Headers, Male Pins Procurement Notes

Verify part authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status as per latest documentation. Ensure storage conditions maintain integrity of gold-plated contacts. Check for obsolescence notices or PCNs affecting specifications before final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when vertical orientation and through-hole termination are required. Consider the 26-position count and 2.54mm pitch compatibility with mating connectors. Evaluate thermal stability requirements against the -55°C to 125°C operating range. Assess mechanical stress needs for the inclusion of mounting flanges and keying features.

Headers, Male Pins Part Context

Part of the CWN series from CW Industries, designed for robust rectangular connector applications. This model specifically addresses needs for vertical headers with secure locking mechanisms via flanges. It complements other CWN variants differing in position count or row configuration while maintaining consistent interface standards.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing designs carefully if considering alternatives.
