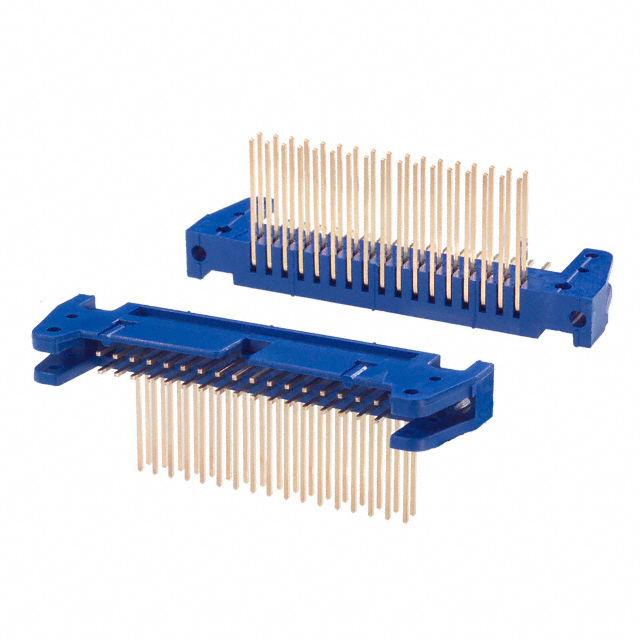

CWN-320-34-0000

$9.08

Description：CONN HEADER R/A 34POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk

SKU:ec7e47dd5091 Category: Headers, Male Pins Brand: CW Industries

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CWN-320-34-0000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN HEADER R/A 34POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for CWN-320-34-0000

Description：CONN HEADER R/A 34POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：34
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Wire Wrap
Fastening Type：Push-Pull
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：0.610" (15.49mm)
Overall Contact Length：-
Insulation Height：0.291" (7.40mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Nickel
Contact Material：Phosphor Bronze
Insulation Material：Thermoplastic
Features：Keying Slot, Mounting Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Blue
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for CWN-320-34-0000

CWN-320-34-0000

Headers, Male Pins Overview

The CWN-320-34-0000 is a discontinued header connector from the CWN series by CW Industries. It features 34 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The component utilizes right-angle wirewrap termination for through-hole mounting. It includes an installation flange and lacks a latch mechanism.

Headers, Male Pins Feature Summary

Right-angle design facilitates board-to-cable or board-to-board connections
Wirewrap termination ensures secure electrical contact
Includes installation flange for mechanical stability

Headers, Male Pins Applications

Board-to-cable interconnects
Board-to-board connections
General electronic assembly

Headers, Male Pins Procurement Notes

This part number is officially discontinued by the manufacturer. No new units are manufactured, and existing stock is depleted. Procurement should focus on identifying verified replacement components or alternative connectors within the same series that meet identical electrical and mechanical specifications.

Headers, Male Pins Selection Notes

Select this component only if legacy compatibility is required. Verify that the right-angle orientation and wirewrap termination match the target PCB layout. Ensure the absence of a latch mechanism aligns with the system's retention requirements. Confirm that the 34-position count fits the design constraints.

Headers, Male Pins Part Context

The CWN-320-34-0000 belongs to the CWN series of rectangular connectors. This series typically offers various position counts and orientations. The specific model represents a right-angle variant designed for wirewrap applications, distinguishing it from vertical or shrouded alternatives in the broader product line.
