CWN-320-40-0000

Headers, Male Pins Overview

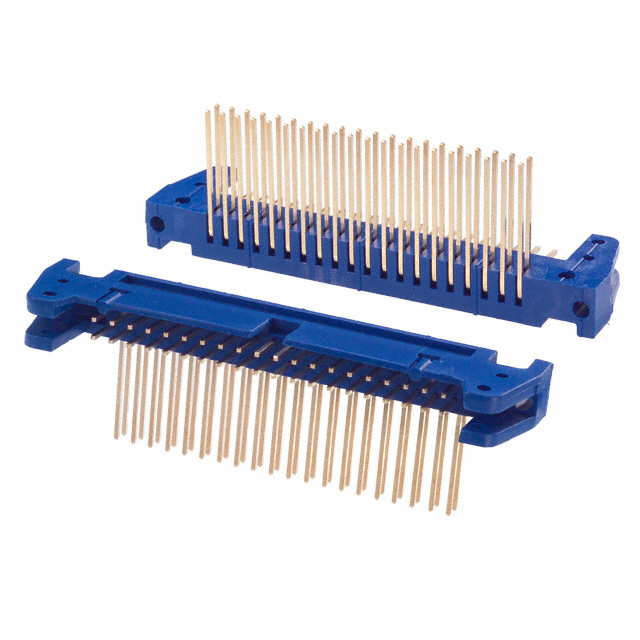

The CWN-320-40-0000 is a rectangular header connector manufactured by CW Industries, designed for right-angle through-hole mounting. It features 40 positions arranged in two rows with a 0.100" (2.54mm) pitch. The connector utilizes male pin contacts made of phosphor bronze, featuring gold plating on the mating interface and nickel underplating. The housing is constructed from blue thermoplastic material rated UL94 V-0, providing insulation height of 0.681 inches. It supports wirewrap termination and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle board-to-wire configuration for space-efficient PCB integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Blue thermoplastic insulation with UL94 V-0 flammability rating
• Wirewrap termination style for secure lead attachment

Headers, Male Pins Applications

• Industrial control panel interconnections
• Consumer electronics internal wiring harnesses
• Telecommunications equipment backplanes
• Automotive electronic module connections

Headers, Male Pins Procurement Notes

Verify component authenticity against CW Industries official documentation. Confirm that the part number matches the specific right-angle, 40-position variant. Check for any product change notices or obsolescence alerts prior to finalizing procurement orders. Ensure storage conditions comply with manufacturer guidelines to maintain contact integrity.

Headers, Male Pins Selection Notes

Select this model when right-angle mounting is required for 40-channel interconnects. The 2.54mm pitch suits standard PCB layouts. Verify compatibility with mating receptacles regarding contact length and insulation height. Consider the wirewrap termination method for assembly processes. Ensure environmental ratings meet operational temperature requirements.

Headers, Male Pins Part Context

This component belongs to the CWN series of headers from CW Industries. It is distinct from vertical variants like the CWN-370 series due to its right-angle orientation. The 40-position count differentiates it from lower-count models such as the CWN-320-16 or CWN-320-26. It serves as a specialized interconnect solution within the broader rectangular connector family.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed in the provided data. Cross-reference with CW Industries catalogs for equivalent right-angle headers if availability is an issue. Ensure replacement parts match the 2.54mm pitch and 40-position configuration.
