CWN-321-10-0000

Headers, Male Pins Overview

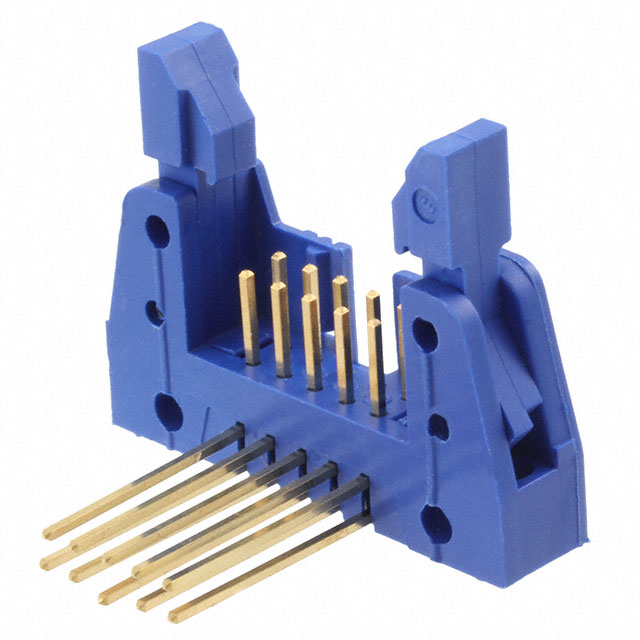

The CWN-321-10-0000 is a rectangular header connector manufactured by CW Industries, designed for through-hole mounting. It features a right-angle configuration with ten positions arranged in two rows and a 0.100-inch (2.54mm) pitch. The connector utilizes wirewrap termination methods and includes an eject latch mechanism for secure mating. Constructed with phosphor bronze contacts featuring gold plating, it operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layouts
• Eject latch ensures secure connection retention
• Wirewrap termination supports reliable circuit integration

Headers, Male Pins Applications

• General electronic interconnect systems
• Board-to-board or board-to-wire connections
• Industrial control equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official CW Industries documentation to confirm current availability status. Ensure that the required right-angle orientation and wirewrap termination style align with the target assembly specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle header with ten positions is required for through-hole implementation. Confirm compatibility with the mating receptacle's pin count and pitch. Verify that the wirewrap termination method suits the manufacturing process and that the operating temperature range meets environmental requirements.

Headers, Male Pins Part Context

This part belongs to the CWN series of rectangular connectors from CW Industries. It is specifically engineered for applications requiring robust mechanical retention via an eject latch. The series offers various position counts and orientations to support diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Consult official CW Industries substitution guides for verified alternative part numbers. Ensure any replacement maintains identical electrical ratings, mechanical dimensions, and termination styles to guarantee functional compatibility.
