CWN-350-10-0000

$2.25

Description：CONN HEADER VERT 10POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk

SKU:0ac91a1723f2 Category: Headers, Male Pins Brand: CW Industries

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CWN-350-10-0000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN HEADER VERT 10POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for CWN-350-10-0000

Description：CONN HEADER VERT 10POS 2.54MM
Series：CWN
Mfr：CW Industries
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：0.681" (17.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Nickel
Contact Material：Phosphor Bronze
Insulation Material：Thermoplastic
Features：Keying Slot, Mounting Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Blue
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for CWN-350-10-0000

CWN-350-10-0000

Headers, Male Pins Overview

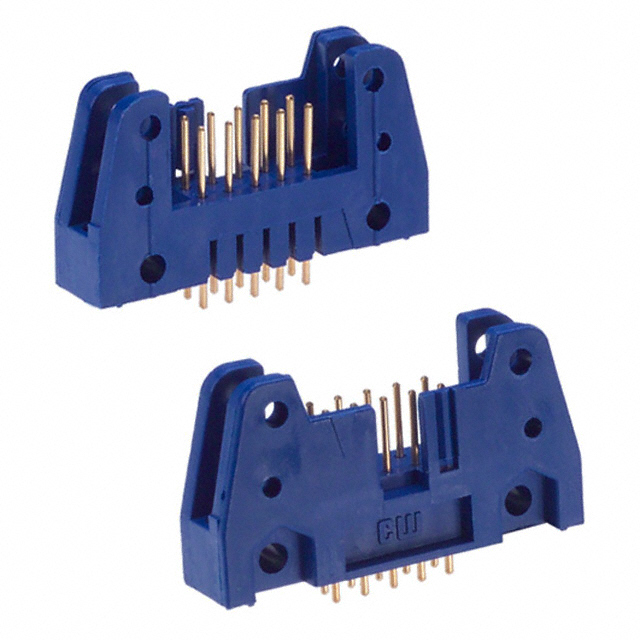

The CWN-350-10-0000 is a vertical header connector manufactured by CW Industries, designed for through-hole mounting. It features 10 positions arranged in two rows with a 2.54mm (0.100 inch) pitch. The connector utilizes male pin contacts with gold plating and is rated for 1A current. Constructed with thermoplastic insulation, it supports a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Vertical board-to-board or wire-to-board interconnection capability
Gold-plated phosphor bronze contacts for reliable conductivity
Thermoplastic insulator with UL94 V-0 fire rating
Through-hole termination for secure PCB attachment

Headers, Male Pins Applications

General electronic circuit interconnections
Industrial control panel wiring
Consumer electronics assembly
Communication equipment signal routing

Headers, Male Pins Procurement Notes

Verify component status as the part may be obsolete. Confirm availability of authorized substitutes such as 3M D3793-6002-AR if original stock is unavailable. Ensure compatibility with mating receptacles regarding pitch and row configuration before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring low-profile vertical headers with standard 2.54mm spacing. Consider the 1A current rating and thermal limits when designing circuits. Verify that the through-hole footprint matches the target PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the CWN series of rectangular connectors from CW Industries. It is specifically categorized under headers and male pins. The product line focuses on reliable interconnect solutions for various industrial and commercial electronic applications.

Headers, Male Pins Replacement Considerations

The 3M D3793-6002-AR is listed as a similar substitute. Verify mechanical dimensions and electrical ratings before replacement to ensure functional equivalence.
