CWN-350-14-0000

Headers, Male Pins Overview

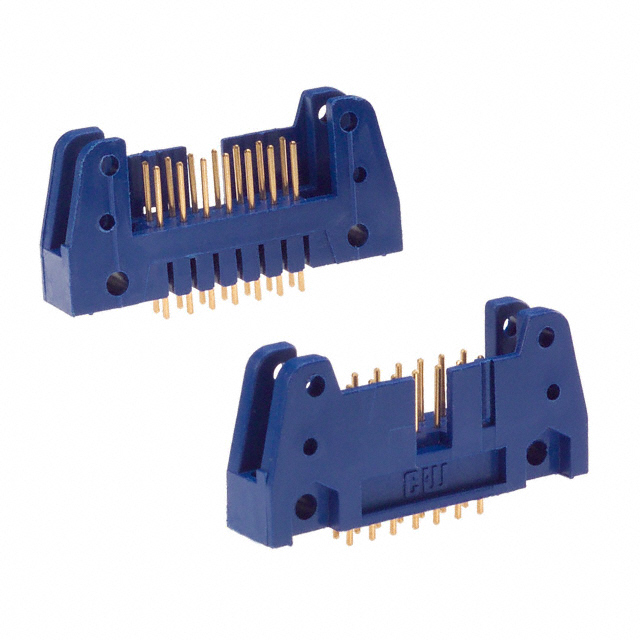

The CWN-350-14-0000 is a rectangular connector header manufactured by CW Industries. It features a 14-position configuration arranged in two rows. The mating pitch is 0.100 inches (2.54 mm). The connector utilizes male pins designed for surface mount technology with a right-angle termination style. The housing is constructed from polyphenylene sulfide material, providing thermal stability and mechanical durability for electronic circuit board applications.

Headers, Male Pins Feature Summary

• Right-angle surface mount termination for compact PCB layout integration
• Two-row header configuration with 14 positions
• Polyphenylene sulfide housing for enhanced thermal resistance

Headers, Male Pins Applications

• General purpose electronic circuit boards
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific surface mount footprint dimensions against the official datasheet to ensure compatibility with the target printed circuit board design. Confirm that the right-angle orientation aligns with the assembly constraints. Check for any RoHS compliance documentation requirements specific to the end product regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for dense board layouts. The 2.54 mm pitch ensures broad compatibility with standard through-hole or surface mount mating connectors. Consider the thermal properties of the PPS housing if the assembly process involves high-temperature soldering profiles or operates in elevated temperature environments.

Headers, Male Pins Part Context

This part belongs to the CW Industries series of rectangular headers and wire housings. It serves as a male pin connector interface within their broader portfolio of interconnect solutions. The model designation indicates specific row count, position number, and termination style characteristics consistent with the manufacturer's naming conventions for surface mount headers.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical specifications carefully if considering alternative manufacturers' components with similar 14-position, 2.54 mm pitch surface mount headers.
