CWN-350-20-0000

Headers, Male Pins Overview

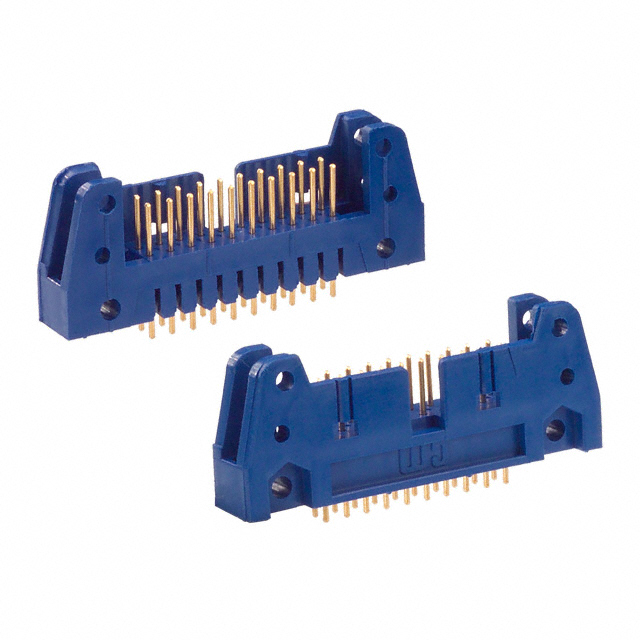

The CWN-350-20-0000 is a rectangular header connector manufactured by CW Industries, designed for board-to-wire applications. It features 20 positions arranged in two rows with a 0.100 inch (2.54mm) pitch. The connector utilizes male pin contacts made of phosphor bronze with gold plating on the mating interface and nickel plating on the tail. It employs a shrouded design with a four-wall shield to ensure proper alignment and protection. The unit supports through-hole termination via solder pins and operates within a temperature range of -55°C to +125°C. Rated for 1A current, it includes an insulating blue thermoplastic body compliant with UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Shrouded header design with four-wall shielding for precise alignment and contact protection
• Male pin configuration with gold-plated mating surfaces for reliable signal transmission
• Through-hole solder termination method ensuring secure mechanical attachment to printed circuit boards

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system wiring
• Consumer appliance circuit boards

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm availability status, as components may be subject to obsolescence notices. Ensure that the required contact count, pitch, and termination style match the design specifications. Cross-reference datasheets for environmental ratings and material certifications before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, shrouded header with male pins is required for high-reliability connections. Consider the 0.100 inch pitch and two-row layout for space-constrained designs. Verify compatibility with mating sockets and PCB hole patterns. Evaluate thermal and electrical ratings against operational requirements to ensure long-term performance stability.

Headers, Male Pins Part Context

This connector belongs to the CWN series of headers and wire housings from CW Industries. The series offers various configurations for different pitch and position requirements. This specific model represents a standard vertical header solution suitable for general-purpose interconnect needs in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the same series or equivalent products from other manufacturers offering identical pitch, contact count, and mounting style. Verify mechanical dimensions and electrical ratings to ensure functional interchangeability without redesigning the PCB footprint.
