CWN-350-34-0000

Headers, Male Pins Overview

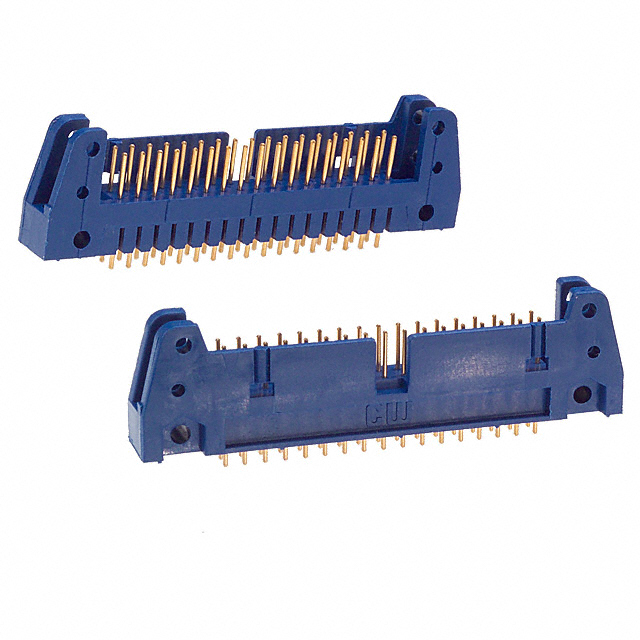

The CWN-350-34-0000 is a vertical header connector from the CWN series by CW Industries. It features 34 positions arranged in two rows with a 2.54mm pitch. Designed for through-hole mounting, it utilizes an IDC termination style for wire connection and solder pins for PCB attachment. The contacts are made of phosphor bronze with gold plating on the mating surface. The insulator is blue thermoplastic rated UL94 V-0, supporting a temperature range of -55°C to 125°C and a current rating of 1A.

Headers, Male Pins Feature Summary

• IDC termination style enables rapid wire-to-board assembly without crimping tools.
• Vertical orientation facilitates dense board layout configurations.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission.
• Blue UL94 V-0 thermoplastic insulation provides flame resistance.

Headers, Male Pins Applications

• Industrial control panel wiring
• Consumer electronics interconnects
• Telecommunications equipment headers

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the CWN-350-34-0000 to confirm current manufacturing status and any recent product change notices. Ensure that the required IDC tooling matches the contact geometry specified in the official documentation. Cross-reference the pin count and row configuration against the target PCB footprint to prevent mechanical mismatch during integration.

Headers, Male Pins Selection Notes

Select this component when a vertical, IDC-style header is required for 34-position connections. Confirm that the 2.54mm pitch aligns with the cable harness specifications. Evaluate the 1A current rating against the application's electrical load requirements. Consider the through-hole solder termination for robust mechanical fixation on the printed circuit board.

Headers, Male Pins Part Context

This part belongs to the CWN series of rectangular connectors manufactured by CW Industries. The series typically offers various position counts and termination styles. The CWN-350-34-0000 specifically denotes a 34-position variant within this family, characterized by its dual-row layout and IDC termination method for efficient wiring applications.

Headers, Male Pins Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify compatibility with existing IDC tools before sourcing alternatives.

Headers, Male Pins FAQ

What is the contact material for the CWN-350-34-0000?

The contacts are made of phosphor bronze with gold plating on the mating surface.

Does this connector support solder termination?

Yes, it uses a solder termination style for attaching to the PCB via through-hole pins.
