CWN-350-40-0000

Headers, Male Pins Overview

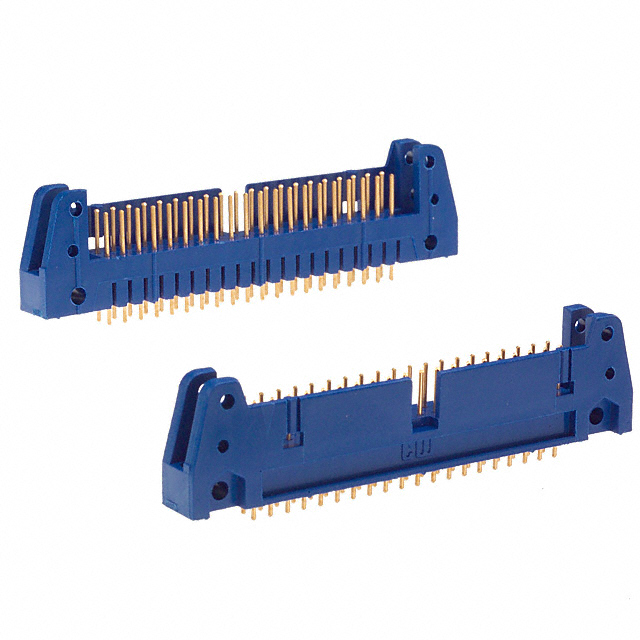

The CWN-350-40-0000 is a vertical header connector from the CWN series by CW Industries. It features 40 positions arranged in two rows with a 2.54mm (0.100 inch) pitch. The connector utilizes male pins with gold-plated contacts and phosphor bronze material. Designed for through-hole termination, it includes an insulating height of 0.681 inches and operates within a temperature range of -55°C to 125°C. The unit carries UL94 V-0 flammability ratings and supports a rated current of 1A.

Headers, Male Pins Feature Summary

• Vertical board-to-board or wire-to-board interconnection capability
• Gold-plated contact surfaces for reliable signal transmission
• Integrated keying slots and mounting flanges for secure alignment
• Push-pull locking mechanism for stable mating retention

Headers, Male Pins Applications

• Industrial control system circuit boards
• Telecommunications equipment interfaces
• Consumer electronics internal connections
• Automotive electronic module assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official CW Industries documentation to confirm current availability status. Check for any product change notices or obsolescence alerts prior to procurement. Ensure that the required quantity matches the actual project needs as supply chain conditions may vary. Confirm compliance with relevant environmental standards such as RoHS if applicable to the target market.

Headers, Male Pins Selection Notes

Select this component when a vertical orientation with a standard 2.54mm pitch is required. Consider the 1A current rating and -55°C to 125°C operating range for environmental suitability. Verify that the through-hole mounting style and push-pull locking mechanism align with the mechanical design constraints of the assembly.

Headers, Male Pins Part Context

This connector belongs to the CWN series of rectangular headers manufactured by CW Industries. The series is characterized by its robust construction and versatile mounting options. The CWN-350-40-0000 specifically represents a 40-position variant designed for high-density applications requiring reliable electrical connectivity in demanding environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult CW Industries directly for potential cross-reference recommendations or alternative components within the same series.
