CWN-350-50-0000

Headers, Male Pins Overview

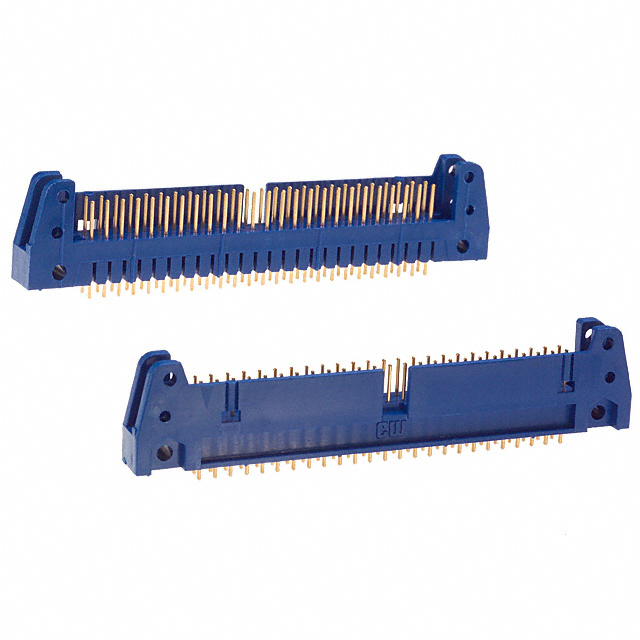

The CWN-350-50-0000 is a male header connector from the CW Industries CWN series, designed for board-to-wire applications. It features 50 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The connector utilizes through-hole termination and solder pin mounting. Contacts are made of phosphor bronze with gold plating on the mating surface and nickel on the tail. The insulator is blue thermoplastic rated UL94 V-0, offering a shrouded four-wall design. It operates within a temperature range of -55°C to 125°C and carries a current rating of 1A.

Headers, Male Pins Feature Summary

• Shrouded four-wall housing provides alignment and protection for contacts during mating.
• Gold-plated phosphor bronze contacts ensure reliable electrical conductivity and corrosion resistance.
• Through-hole solder termination offers secure mechanical attachment to printed circuit boards.
• Integrated keying slots and mounting flanges facilitate precise orientation and stable installation.

Headers, Male Pins Applications

• Industrial control systems requiring robust wire-to-board connections
• Consumer electronics assemblies needing high-density interconnects
• Automotive electronic modules operating in varied thermal environments

Headers, Male Pins Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the part number matches the specific series and position count required for your design. Ensure storage conditions maintain integrity before assembly. Review recent product change notices for any material or packaging updates that may affect integration.

Headers, Male Pins Selection Notes

Select this connector when a vertical, shrouded header with 50 positions is necessary. The 2.54mm pitch suits standard PCB layouts. Consider the 1A current rating and 125°C temperature limit for environmental compatibility. The four-wall shroud is critical if misalignment prevention is a priority over open-frame designs.

Headers, Male Pins Part Context

This component belongs to the CWN series of headers from CW Industries. It is distinct from the CWN-370 and CWN-360 variants which differ in contact length, insulation height, or terminal style. The CWN-350 specifically denotes the standard vertical header configuration with solder pins, differentiating it from right-angle or press-fit alternatives in the broader catalog.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Designers should consult CW Industries directly for potential obsolescence management or equivalent series recommendations if this item becomes unavailable.
