CWN-370-10-0000

Headers, Male Pins Overview

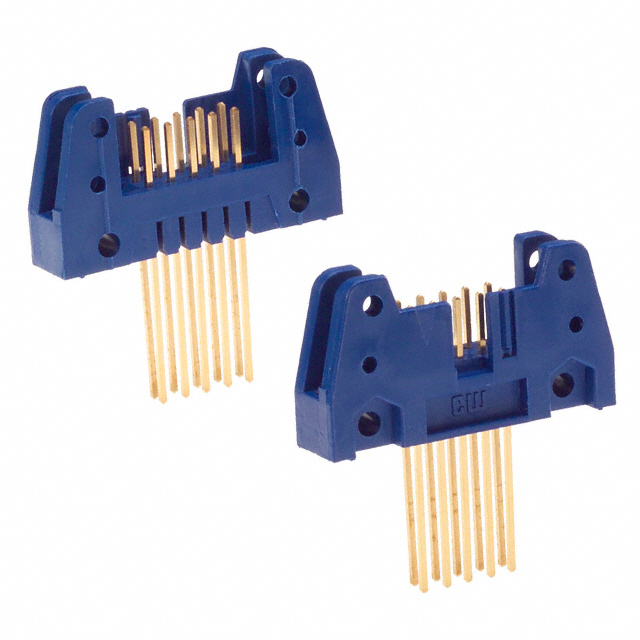

The CWN-370-10-0000 is a vertical header connector manufactured by CW Industries, designed for through-hole mounting. It features a 2-row configuration with 10 positions and a 0.100-inch (2.54mm) mating pitch. The connector utilizes male pin contacts with gold plating on the mating interface and nickel plating on the post. Constructed from thermoplastic insulation in blue, it includes keyway and flange features for secure installation. Rated for 1A current, it operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Vertical board-to-cable/wire style design for through-hole termination
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Integrated keyway and mounting flange provide mechanical stability and alignment

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer databases to confirm availability status, as component lifecycle stages may change. Ensure that the selected variant matches the required row count and pin quantity for the intended PCB layout. Cross-reference the datasheet specifications regarding contact material and plating thickness to guarantee compatibility with mating connectors and environmental operating conditions.

Headers, Male Pins Selection Notes

Select this connector when a low-profile vertical header with a standard 2.54mm pitch is required for 10-position applications. Consider the 1A current rating and -55°C to 125°C operating range to ensure suitability for the target environment. Verify that the through-hole termination method aligns with the manufacturing process and that the flange design fits within the available mechanical clearance constraints.

Headers, Male Pins Part Context

This component belongs to the CWN series of header connectors from CW Industries, which are characterized by their vertical orientation and robust thermoplastic construction. The series supports various pin counts and row configurations, offering a standardized solution for board-to-wire connections. The CWN-370-10-0000 specifically addresses needs for compact, reliable interconnects in space-constrained designs requiring secure mechanical locking via flanges.
