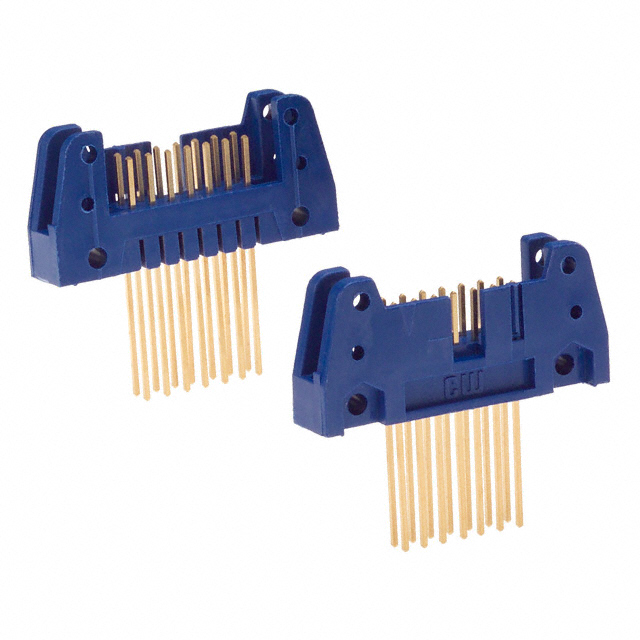

CWN-370-14-0000

CWN-370-14-0000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN HEADER VERT 14POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for CWN-370-14-0000

• Description：CONN HEADER VERT 14POS 2.54MM
• Series：CWN
• Mfr：CW Industries
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：14
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Wire Wrap
• Fastening Type：Push-Pull
• Contact Length - Mating：0.240" (6.10mm)
• Contact Length - Post：0.610" (15.49mm)
• Overall Contact Length：-
• Insulation Height：0.681" (17.30mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Contact Finish - Post：Nickel
• Contact Material：Phosphor Bronze
• Insulation Material：Thermoplastic
• Features：Keying Slot, Mounting Flange
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Blue
• Current Rating (Amps)：1A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for CWN-370-14-0000
