CWN-370-16-0000

Headers, Male Pins Overview

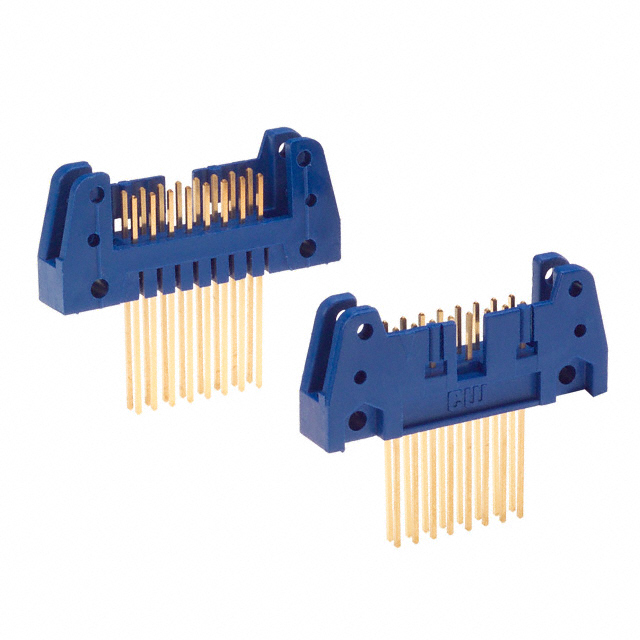

The CWN-370-16-0000 is a vertical header connector manufactured by CW Industries, designed for through-hole mounting. It features 16 positions arranged in a dual-row configuration with a 2.54mm (0.100 inch) pitch. The connector utilizes phosphor bronze contacts with gold plating on the mating interface and nickel plating on the post section. The insulator is made of blue thermoplastic material rated UL94 V-0, providing an insulation height of 0.681 inches. It includes keyway and mounting flange features for secure installation and supports a working temperature range from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical orientation with through-hole termination for stable PCB integration
• Dual-row layout with 2.54mm pitch accommodating 16 contact positions
• Gold-plated mating surfaces ensuring reliable signal transmission
• Integrated keyway and mounting flange for precise alignment and fixation

Headers, Male Pins Applications

• Board-to-board interconnection systems requiring vertical headers
• Industrial control panels utilizing standard 2.54mm pitch connectors
• Electronic equipment housing needing polarized header assemblies

Headers, Male Pins Procurement Notes

Verify component authenticity against manufacturer specifications before integration. Confirm that the specific part number matches the required pin count and row configuration for your design. Ensure compatibility with mating sockets regarding contact length and insulation height. Check for any recent product change notices or obsolescence alerts from CW Industries prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a vertical, non-angled header is required for direct PCB insertion. The 16-position count suits moderate density applications. Verify that the board thickness accommodates the specified insulation height and that the mating environment supports the thermal range. Consider the gold plating thickness if high-cycle durability is critical for the connection points.

Headers, Male Pins Part Context

This component belongs to the CWN series of rectangular connectors produced by CW Industries. It serves as a male header variant within their broader portfolio of board-to-cable and board-to-board interconnect solutions. The series is characterized by standardized spacing and robust mechanical features for general electronic assembly needs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other CW Industries headers with identical 16-pin, dual-row, vertical specifications and 2.54mm pitch. Cross-brand replacements must match the exact footprint, pin count, and insulation height to ensure mechanical fit without modification.
