CWN-370-20-0000

Headers, Male Pins Overview

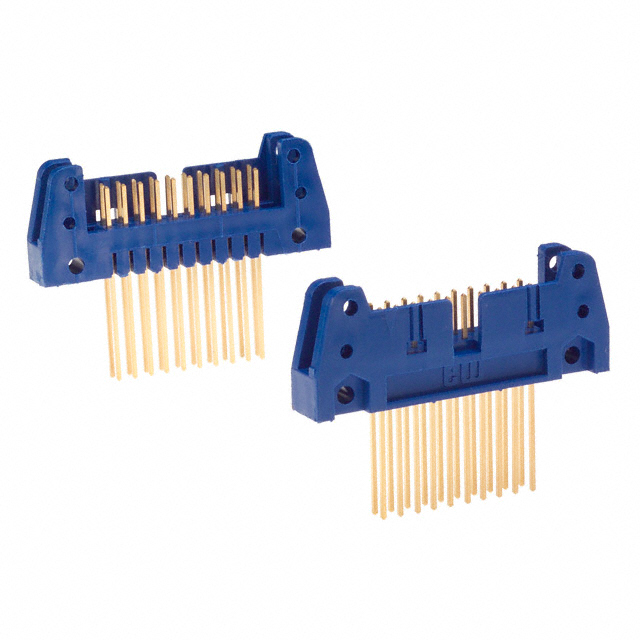

The CWN-370-20-0000 is a vertical header connector manufactured by CW Industries, designed for through-hole mounting. It features 20 positions arranged in a dual row with a 0.100-inch (2.54mm) pitch. The connector utilizes male pin contacts made of phosphor bronze, featuring gold plating on the mating interface and nickel plating on the tail. The insulator is constructed from blue thermoplastic material rated UL94 V-0, providing an insulation height of 0.681 inches. This component supports a rated current of 1A and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical board-to-cable or wire style configuration with push-pull locking mechanism
• Gold-plated phosphor bronze male pins ensure reliable electrical conductivity
• Blue thermoplastic insulator offers UL94 V-0 flammability rating
• Includes keyway and mounting flange for secure installation

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• General electronic equipment headers

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the component status aligns with project requirements, as availability may vary. Ensure compatibility with mating connectors regarding pin count, pitch, and locking style. Cross-reference datasheets for environmental ratings and material specifications to guarantee suitability for the intended application environment.

Headers, Male Pins Selection Notes

Select this connector when a vertical, through-hole header with a 2.54mm pitch is required. Ensure the mating device matches the 20-position dual-row configuration and utilizes compatible female sockets. Verify that the operating temperature range and current rating meet the circuit demands. Consider the physical dimensions, including insulation height and contact length, to ensure adequate clearance within the assembly.

Headers, Male Pins Part Context

This component belongs to the CWN series of header connectors from CW Industries. These connectors are characterized by their vertical orientation and through-hole termination style. The series typically offers various position counts and locking mechanisms, serving as standard interconnect solutions for PCB assemblies requiring robust mechanical retention and electrical connectivity.

Headers, Male Pins Replacement Considerations

Consult official manufacturer substitution guides for verified equivalent part numbers. Generic cross-references should be validated against mechanical and electrical specifications to ensure compatibility.
