CWN-370-26-0000

Headers, Male Pins Overview

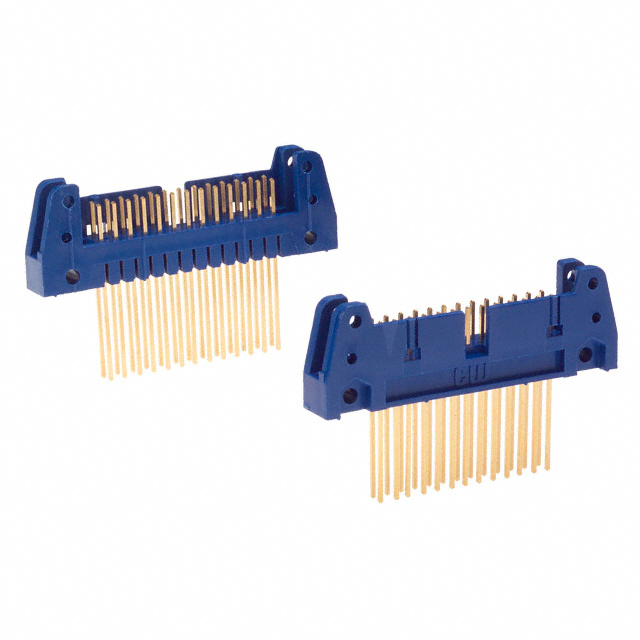

The CWN-370-26-0000 is a vertical header connector manufactured by CW Industries, designed for through-hole mounting. It features 26 positions arranged in two rows with a 0.100" (2.54mm) pitch. The connector utilizes male pins made of phosphor bronze with gold plating on the mating surface and nickel on the tail. It includes an insulating shroud with four walls and offers keying slots and mounting flanges for secure installation. Rated at 1A, it operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board or board-to-wire configuration with through-hole termination
• Two-row layout providing 26 contact positions with 0.100 inch spacing
• Four-wall insulated shroud design for enhanced pin protection and alignment
• Integrated keying slots and mounting flanges for precise PCB positioning

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring
• Communication device signal routing

Headers, Male Pins Procurement Notes

Verify component status carefully as this part is scheduled for obsolescence and will be discontinued by the manufacturer. Confirm availability through authorized distributors before finalizing procurement plans. Ensure that current inventory levels meet project requirements prior to order placement. Review datasheet specifications thoroughly to confirm compatibility with existing assembly processes and mating connectors.

Headers, Male Pins Selection Notes

Select this connector when a vertical, two-row header with a 2.54mm pitch is required for through-hole applications. The four-wall shroud provides superior mechanical stability compared to open designs. Verify that the 1A current rating and 125°C maximum operating temperature align with the specific thermal and electrical demands of the target circuit environment.

Headers, Male Pins Part Context

This component belongs to the CWN series of rectangular headers from CW Industries. It represents a standard vertical pin header solution commonly used in legacy and established electronic designs. The specific model indicates a 26-position variant within the broader family of connectors offering various pin counts and configurations.

Headers, Male Pins Replacement Considerations

• CWN-370-26-0077

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze.

Does this connector include a shroud?

Yes, it features an insulated shroud with four walls.
