CWN-370-40-0000

Headers, Male Pins Overview

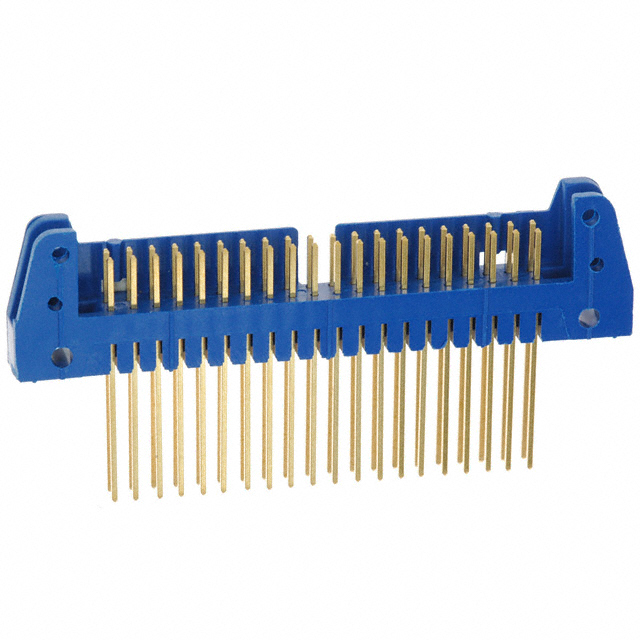

The CWN-370-40-0000 is a vertical header connector from the CWN series by CW Industries. It features 40 positions in a dual-row configuration with a 2.54mm (0.100 inch) pitch. Designed for through-hole termination, it utilizes male pins with gold plating on the mating interface. The connector supports wire-to-board applications and operates within a temperature range of -55°C to +125°C. Key physical attributes include a phosphor bronze contact material, blue thermoplastic insulation rated UL94 V-0, and an insulating height of 0.681 inches. It includes keyway and mounting flange features for secure installation.

Headers, Male Pins Feature Summary

• Vertical through-hole design for board mounting
• Gold-plated male pin contacts for reliable signal transmission
• Integrated keyway and mounting flange for alignment and stability

Headers, Male Pins Applications

• Wire-to-board interconnections
• General electronic circuit assembly
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify component status as this part may be obsolete or discontinued. Confirm availability through authorized distributors or direct manufacturer channels. Ensure compatibility with mating receptacles regarding pitch and row count. Check for updated replacement recommendations if production continuity is required.

Headers, Male Pins Selection Notes

Select this connector for applications requiring vertical orientation and through-hole soldering. Ensure the mating device matches the 2.54mm pitch and 40-position dual-row format. Consider the operating temperature range and current rating requirements. Verify that the PCB layout accommodates the specified insulating height and mounting flange dimensions.

Headers, Male Pins Part Context

This component belongs to the CWN series of header connectors manufactured by CW Industries. The series offers various position counts and configurations for different connectivity needs. The CWN-370-40-0000 specifically addresses the need for a 40-pin vertical solution with robust mechanical and electrical specifications suitable for demanding environments.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to potential obsolescence, consult the manufacturer for current equivalent models or approved replacements.
