CWN-370-50-0000

Headers, Male Pins Overview

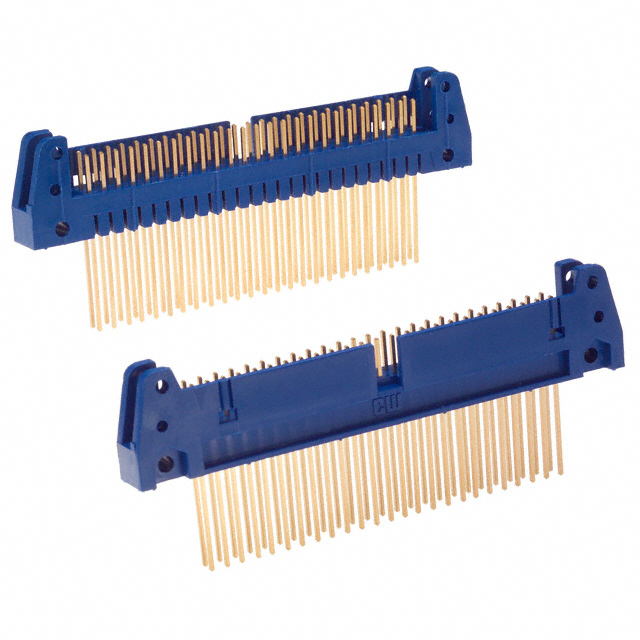

The CWN-370-50-0000 is a vertical board-to-board/header connector manufactured by CW Industries. It features a 2-row configuration with 50 total positions and a 0.100" (2.54mm) pitch. Designed for through-hole mounting, it utilizes phosphor bronze contacts with gold plating on the mating interface and nickel plating on the tail. The insulator is blue thermoplastic rated UL94 V-0. Key mechanical features include a keying slot and mounting flange. It operates within a temperature range of -55°C to 125°C and has a current rating of 1A.

Headers, Male Pins Feature Summary

• Vertical header design with integrated keying slot and mounting flange for secure alignment
• Gold-plated phosphor bronze contacts ensuring reliable signal transmission
• Blue thermoplastic insulation with UL94 V-0 flammability rating

Headers, Male Pins Applications

• High-density PCB interconnections
• Industrial control systems requiring robust header connections
• Electronic assemblies needing polarized mounting solutions

Headers, Male Pins Procurement Notes

This component is scheduled for obsolescence and will be discontinued by the manufacturer. Verify end-of-life status and availability through authorized distributors before finalizing designs. Consider alternative sourcing strategies or lifecycle management plans due to potential supply constraints associated with discontinued parts.

Headers, Male Pins Selection Notes

Select this part for applications requiring a 50-position vertical header with specific polarization needs. Ensure compatibility with the 0.100" pitch mating connector. Verify that the 1A current rating and -55°C to 125°C operating temperature meet system requirements. Confirm through-hole footprint compatibility with PCB layout.

Headers, Male Pins Part Context

Part of the CWN series from CW Industries, designed for board-to-board and board-to-cable connections. This specific model represents a high-pin-count variant within the series, offering vertical orientation and mechanical stability features like flanges and keying slots for precise assembly in dense electronic environments.

Headers, Male Pins Replacement Considerations

• CWN-370-50-0001
• CWN-370-50-0002

Headers, Male Pins FAQ

What is the contact material for this connector?

The contacts are made of phosphor bronze.

Does this connector have polarization features?

Yes, it includes a keying slot to ensure correct orientation during mating.
