CWN-562-10-0021

Headers, Male Pins Overview

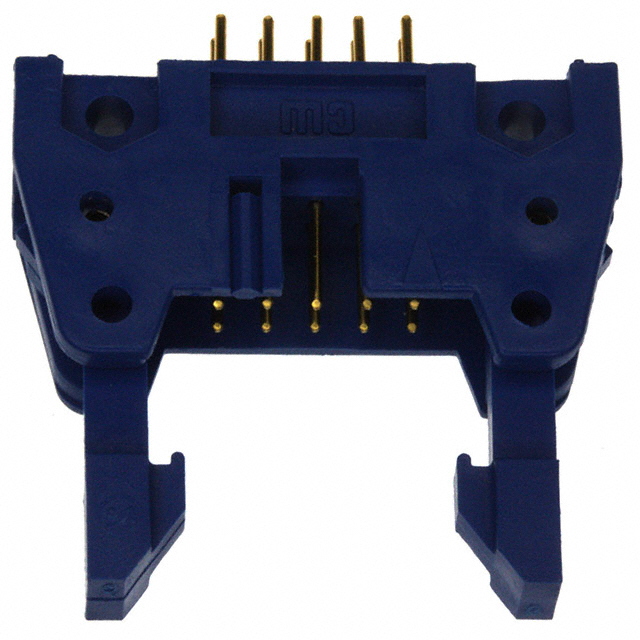

The CWN-562-10-0021 is a vertical header connector manufactured by CW Industries. It features 10 positions arranged in a single row with a 2.54mm pitch. The component utilizes gold-plated phosphor bronze contacts and a blue thermoplastic insulator rated UL94 V-0. Designed for board-to-cable or wire applications, it employs an IDC termination method. The connector includes a four-wall shroud and keying features to ensure proper alignment during mating.

Headers, Male Pins Feature Summary

• Vertical orientation with shrouded housing for precise alignment
• IDC termination for rapid wire connection
• Four-wall shroud design with integrated keying

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire harness assembly
• Commercial electronic equipment headers

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official CW Industries documentation to confirm exact pin count, insulation color, and termination style. Ensure mating connectors are mechanically compatible with the slot and four-wall shroud design. Confirm RoHS compliance status through current manufacturer declarations rather than distributor summaries.

Headers, Male Pins Selection Notes

Select this component when a vertical IDC header with a single row of ten contacts is required. The 2.54mm pitch suits standard commercial wiring. The blue insulator and gold contact finish provide visual identification and reliable conductivity. Verify that the mating interface supports the keyed header configuration and four-wall shroud constraints.

Headers, Male Pins Part Context

This part belongs to the CWN series of headers and wire housings from CW Industries. The series offers various configurations for commercial applications. The CWN-562 variant specifically denotes a vertical header design. This model provides a standardized solution for connecting wires to printed circuit boards using insulation displacement technology.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-referencing requires matching pitch, position count, termination type, and shroud geometry with equivalent CW Industries products.
