CWN-571-60-0060

Headers, Male Pins Overview

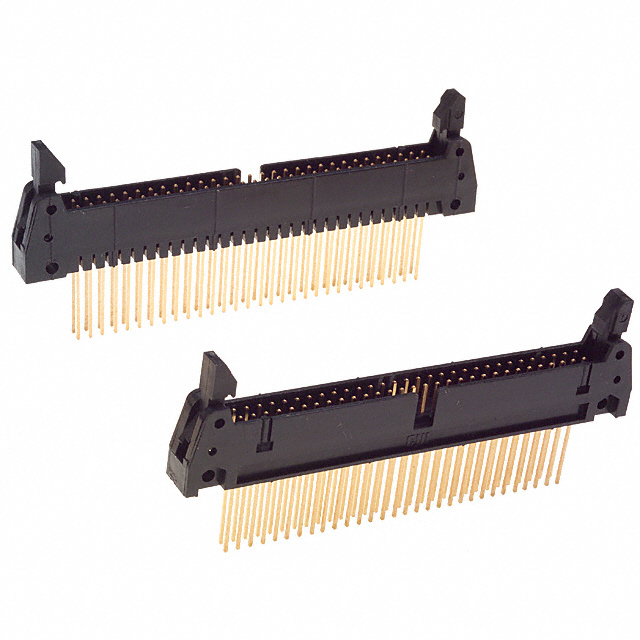

The CWN-571-60-0060 is a vertical header connector manufactured by CW Industries, featuring 60 positions with a 0.100" (2.54mm) pitch. It utilizes through-hole termination and includes shrouding for polarization. The connector operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Vertical orientation design for board-to-board or board-to-wire connections
• Shrouded housing structure providing mechanical alignment and pin protection
• Through-hole mounting style ensuring secure PCB attachment

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify component authenticity against manufacturer specifications. Confirm that the part number matches the required 60-position configuration and 2.54mm pitch. Check for any obsolescence notices or alternative sourcing options if availability is constrained.

Headers, Male Pins Selection Notes

Select this component when a high-density vertical header with shrouded pins is required. Ensure the mating connector aligns with the 0.100 inch pitch specification. Consider the through-hole mounting requirement during PCB layout design.

Headers, Male Pins Part Context

This part belongs to the CWN series of headers from CW Industries. It is designed for commercial applications requiring reliable electrical connections. The product line emphasizes standard spacing and robust mechanical features for industrial environments.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with mating connectors before substitution.
