CWR-170-10-0000

Edgeboard Connectors Overview

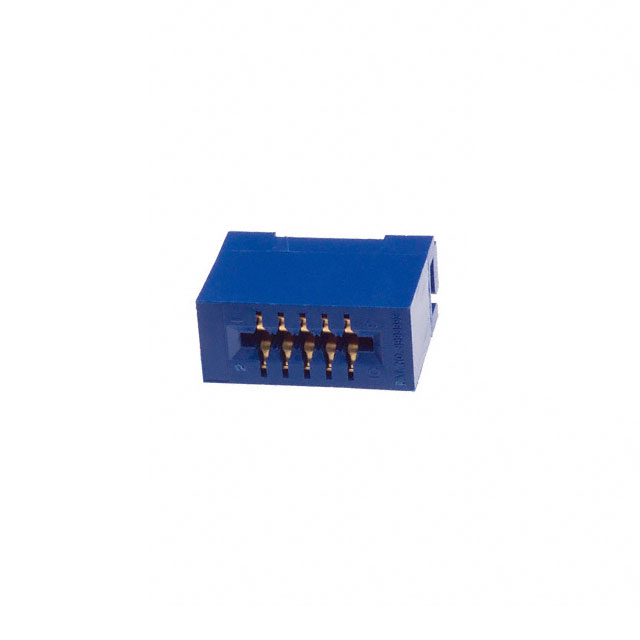

The CWR-170-10-0000 is a standard card edge connector from the CW Industries 170 series, designed for dual-edge board applications. It features a female socket configuration with 10 positions arranged in two rows. The connector utilizes an IDC termination method and operates within a temperature range of -55°C to 125°C. Key electrical specifications include a contact pitch of 0.100 inches (2.54mm) and a compatible card thickness of 0.032 to 0.070 inches (0.81mm to 1.78mm). Contacts are made of phosphor bronze with a gold plating thickness of 10µin (0.25µm).

Edgeboard Connectors Feature Summary

• Dual-edge card edge connector design for non-specified board types.
• IDC termination method for ribbon cable or direct board connection.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission.
• Thermoplastic insulation material supports high-temperature operation.

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces.
• Telecommunications equipment utilizing dual-edge module connections.
• Consumer electronics with compact PCB integration needs.
• Automotive electronic modules requiring high-temperature stability.

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status via official documentation. Check end-of-life status as the product may be scheduled for obsolescence. Ensure compatibility with existing PCB footprint and card thickness requirements before ordering.

Edgeboard Connectors Selection Notes

Select this connector for applications requiring dual-edge card insertion with IDC termination. Verify that the target PCB card thickness falls within the 0.032 to 0.070 inch range. Consider the vertical mounting style and SMD/SMT installation type for assembly processes. Ensure the 10-position, 2-row layout matches the circuit design requirements.

Edgeboard Connectors Part Context

This component belongs to the CW Industries CWR series of standard card edge connectors. It is specifically engineered for dual-edge board applications, offering a female contact configuration. The series is known for its thermoplastic insulation and gold-plated phosphor bronze contacts, suitable for various industrial and commercial electronic interconnect solutions.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The product lifecycle status indicates it is scheduled for obsolescence. Users should consult the manufacturer's official replacement guide or datasheet for valid cross-reference options.

Edgeboard Connectors FAQ

What is the contact pitch of the CWR-170-10-0000?

The contact pitch is 0.100 inches (2.54mm).

Is this connector suitable for high-temperature environments?

Yes, it operates within a temperature range of -55°C to 125°C.

What type of termination does this connector use?

It uses an IDC (Insulation Displacement Connector) termination method.
