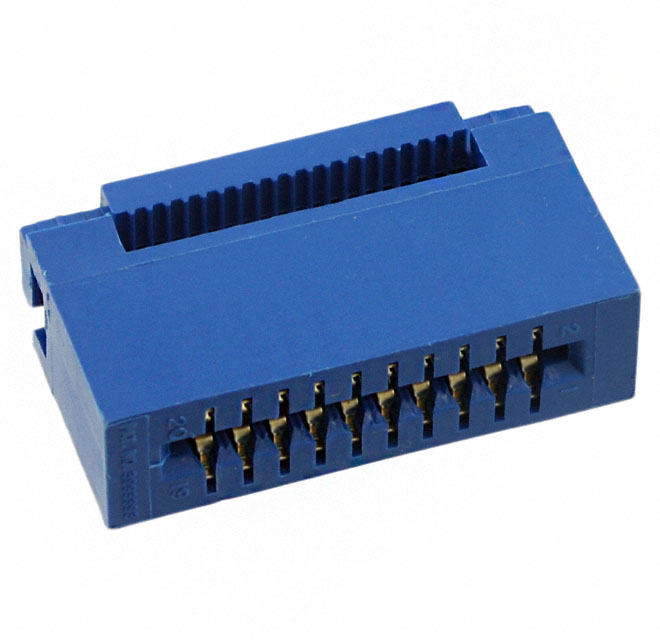

CWR-170-20-0000 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN EDGE DUAL FMALE 20POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for CWR-170-20-0000
- Description：CONN EDGE DUAL FMALE 20POS 0.100
- Series：170
- Mfr：CW Industries
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.032" ~ 0.070" (0.81mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：IDC
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Blue
- Flange Feature：-
- Operating Temperature：-55°C ~ 125°C
Edgeboard Connectors datasheet and documents for CWR-170-20-0000
Edgeboard Connectors Overview
The CWR-170-20-0000 is a dual-row card edge connector manufactured by CW Industries. It features 20 positions with a 2.54 mm (0.1 in) pitch and gold plating on the contacts. Designed for in-line mounting, this component utilizes an IDC termination type suitable for ribbon cable applications. The housing is constructed from thermoplastic material, ensuring durability in standard electronic assemblies.
Edgeboard Connectors Feature Summary
- Dual row configuration for high-density connections
- Gold plated contacts for reliable signal transmission
- IDC termination method for efficient assembly
Edgeboard Connectors Applications
- Ribbon cable interconnects
- Standard card edge board connections
- Electronic module interfaces
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version to confirm current manufacturing status and compliance details. Ensure compatibility with existing PCB layouts and ribbon cable specifications before procurement. Cross-reference official documentation for any recent design changes or obsolescence notices.
Edgeboard Connectors Selection Notes
Select this connector when a dual-row interface with a 2.54 mm pitch is required. The IDC termination suits applications where rapid assembly and secure cable retention are priorities. Confirm that the thermoplastic housing meets environmental requirements for the intended operating conditions.
Edgeboard Connectors Part Context
This component belongs to the CWR series of card edge connectors from CW Industries. It is designed for general-purpose electronic applications requiring robust connectivity between flexible cables and rigid printed circuit boards.
Edgeboard Connectors Replacement Considerations
Consult official manufacturer substitution guides for verified alternatives. Generic equivalents may not match the precise dimensional tolerances or contact plating specifications required for critical applications.
