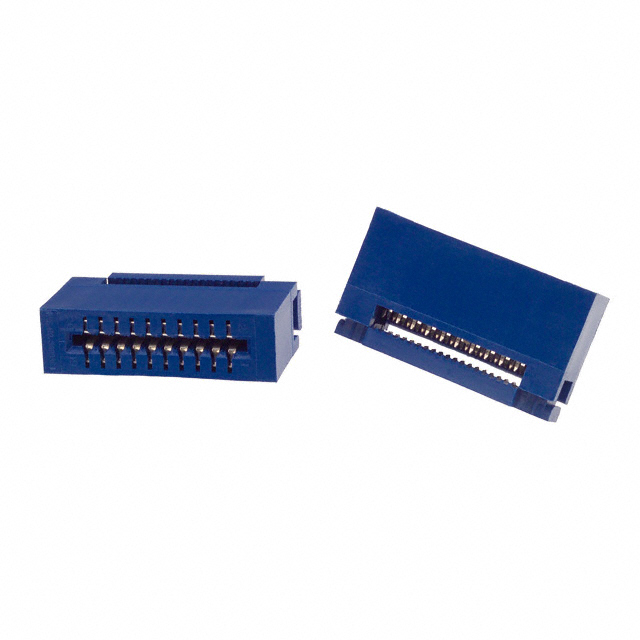

CWR-170-20-0003 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN EDGE DUAL FMALE 20POS .100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for CWR-170-20-0003
- Description：CONN EDGE DUAL FMALE 20POS .100
- Series：170
- Mfr：CW Industries
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.032" ~ 0.070" (0.81mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：IDC
- Contact Material：Phosphor Bronze
- Contact Finish：Tin-Lead
- Contact Finish Thickness：100.0µin (2.54µm)
- Contact Type：Cantilever
- Color：Blue
- Flange Feature：-
- Operating Temperature：-55°C ~ 125°C
Edgeboard Connectors datasheet and documents for CWR-170-20-0003
Edgeboard Connectors Overview
The CWR-170-20-0003 is a dual-edge card edge connector manufactured by CW Industries. It features 20 positions arranged in two rows with a 2.54 mm (0.1 inch) pitch. The connector utilizes an IDC termination method and is designed for in-line mounting. Contact plating is specified as tin-lead, and the housing material is blue thermoplastic. This component belongs to the CWR series and is intended for ribbon cable or card edge applications.
Edgeboard Connectors Feature Summary
- Dual-edge design accommodates double-sided circuit boards
- IDC termination ensures reliable connection without soldering
- Tin-lead contact plating provides corrosion resistance
- Blue thermoplastic housing offers visual identification
Edgeboard Connectors Applications
- Double-sided PCB interconnection
- Ribbon cable assembly integration
- Industrial control panel wiring
- Electronic equipment backplane connections
Edgeboard Connectors Procurement Notes
Verify RoHS compliance status carefully as sources indicate lead content. Confirm availability through authorized distributors due to discontinuation notices. Check for obsolescence warnings before finalizing procurement plans. Ensure tin-lead specifications meet project requirements.
Edgeboard Connectors Selection Notes
Select this part for dual-row card edge applications requiring IDC termination. Verify that the 2.54 mm pitch matches the target PCB layout. Consider the tin-lead plating for specific environmental conditions. Compare against gold-plated alternatives if higher conductivity is needed.
Edgeboard Connectors Part Context
This component is part of the CWR series from CW Industries, specializing in headers and wire housings. It serves as a connector solution for electronic assemblies requiring robust mechanical stability and electrical continuity in compact form factors.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult manufacturer catalogs for direct replacements or verify compatibility with similar CWR series variants.
