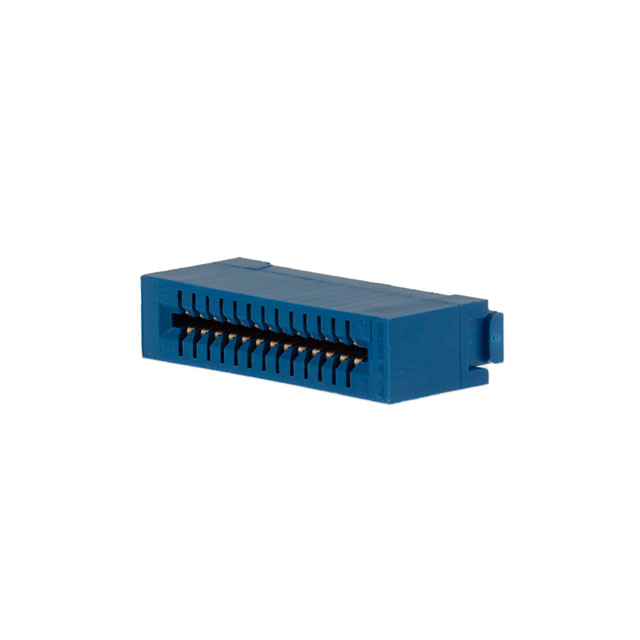

CWR-170-26-0000

$6.72

Description：CONN EDGE DUAL FMALE 26POS 0.100
Series：170
Mfr：CW Industries
Package：Bulk

SKU:d6f84778404c Category: Edgeboard Connectors Brand: CW Industries

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CWR-170-26-0000 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN EDGE DUAL FMALE 26POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for CWR-170-26-0000

Description：CONN EDGE DUAL FMALE 26POS 0.100
Series：170
Mfr：CW Industries
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.032" ~ 0.070" (0.81mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：IDC
Contact Material：Phosphor Bronze
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Blue
Flange Feature：-
Operating Temperature：-55°C ~ 125°C

Edgeboard Connectors datasheet and documents for CWR-170-26-0000

CWR-170-26-0000

Edgeboard Connectors Overview

The CWR-170-26-0000 is a standard card edge connector manufactured by CW Industries. It features 26 positions arranged in two rows with a 2.54 mm pitch. The component utilizes gold plating on contacts and employs an IDC termination method for secure connection. Designed for in-line mounting, this female connector is suitable for ribbon cable applications within the specified operating temperature range.

Edgeboard Connectors Feature Summary

Dual-row configuration with 26 positions
Gold-plated contacts for reliable conductivity
IDC termination mechanism
In-line mounting style

Edgeboard Connectors Applications

Ribbon cable interconnections
Edgeboard connections
Standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify current availability status as the component lifecycle indicates scheduled obsolescence. Confirm that the specific ordering suffix matches functional requirements without altering electrical characteristics. Ensure compatibility with existing PCB footprints and mating connectors before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 26 positions is required. Verify that the 2.54 mm pitch aligns with the design specifications. Consider the IDC termination type for assembly methods. Check environmental ratings against operational conditions to ensure suitability.

Edgeboard Connectors Part Context

This part belongs to the CWR series of standard card edge connectors from CW Industries. It serves as a specialized interconnect solution for electronic assemblies requiring robust ribbon cable attachment. The series provides standardized dimensions and contact configurations for consistent performance across various industrial applications.
