CWR-170-34-0000

Edgeboard Connectors Overview

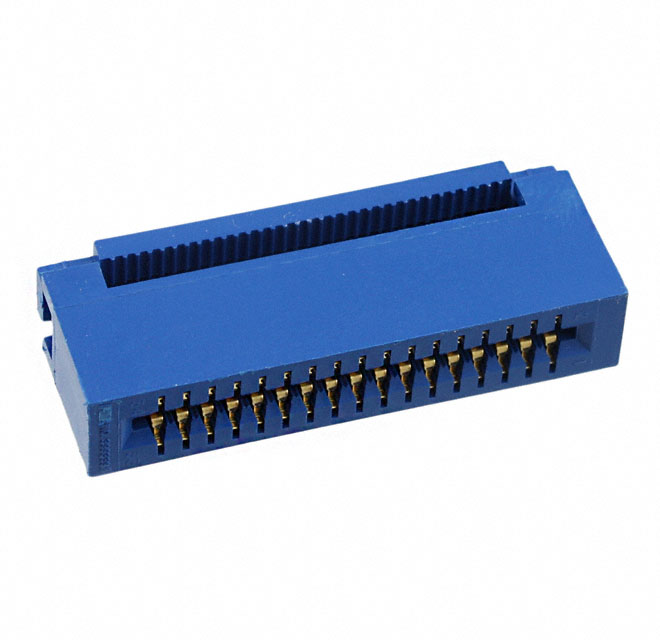

The CWR-170-34-0000 is a commercial-grade card edge connector manufactured by CW Industries. It features 34 positions arranged in a dual row configuration with a 2.54 mm (0.1 inch) pitch. The connector utilizes an IDC termination method for ribbon cable applications and includes gold-plated contacts to ensure reliable signal transmission. Designed for straight, in-line mounting, this component serves as a female socket interface for electronic assemblies requiring robust connectivity.

Edgeboard Connectors Feature Summary

• Dual-row architecture supporting 34 contact positions
• IDC termination mechanism for ribbon cable integration
• Gold-plated phosphor bronze contacts for conductivity
• Straight in-line mounting orientation

Edgeboard Connectors Applications

• Ribbon cable interconnects
• Commercial electronic assemblies
• Card edge board connections

Edgeboard Connectors Procurement Notes

Verify current availability status as the component may be subject to discontinuation or limited supply constraints. Confirm RoHS compliance details through official documentation prior to procurement. Ensure compatibility with existing PCB footprints and ribbon cable specifications during the sourcing phase.

Edgeboard Connectors Selection Notes

Select this connector for applications requiring a 34-position dual-row interface with IDC termination. Verify that the mating ribbon cable matches the 2.54 mm pitch specification. Consider the straight mounting style and commercial grade rating when evaluating environmental and mechanical requirements for the target assembly.

Edgeboard Connectors Part Context

This component belongs to the CWR series of headers and wire housings produced by CW Industries. It is categorized under standard card edge connectors designed for commercial use. The part number indicates specific pin count and row configuration within the manufacturer's standardized product line.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other CW Industries CWR series variants or consult manufacturer catalogs for direct replacements.
