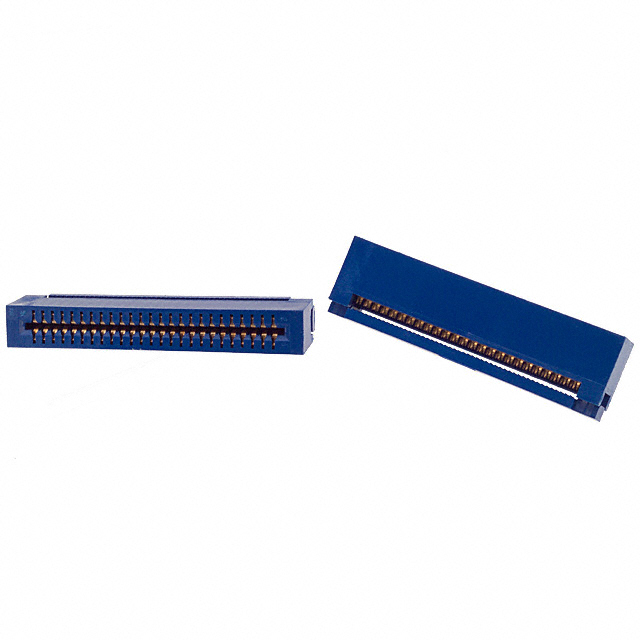

CWR-170-50-0000

$10.46

Description：CONN EDGE DUAL FMALE 50POS 0.100
Series：170
Mfr：CW Industries
Package：Bulk

SKU:bc851d666e75 Category: Edgeboard Connectors Brand: CW Industries

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CWR-170-50-0000 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN EDGE DUAL FMALE 50POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for CWR-170-50-0000

Description：CONN EDGE DUAL FMALE 50POS 0.100
Series：170
Mfr：CW Industries
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.032" ~ 0.070" (0.81mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：IDC
Contact Material：Phosphor Bronze
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Blue
Flange Feature：-
Operating Temperature：-55°C ~ 125°C

Edgeboard Connectors datasheet and documents for CWR-170-50-0000

CWR-170-50-0000

Edgeboard Connectors Overview

The CWR-170-50-0000 is a dual-edge card edge connector manufactured by CW Industries. It features 50 positions with a 2.54 mm (0.1 in) pitch and a 2.54 mm row spacing. The connector utilizes gold-plated phosphor bronze contacts housed in a blue thermoplastic body rated UL94 V-0. Designed for straight, cable mount or free-hanging installation, it supports IDC termination. The component operates within a temperature range of -55°C to 125°C and carries an ECCN classification of EAR99.

Edgeboard Connectors Feature Summary

Dual-edge configuration for standard card edge applications
Gold-plated phosphor bronze contacts ensuring reliable signal transmission
Blue thermoplastic housing with UL94 V-0 flammability rating
IDC termination style for efficient ribbon cable integration

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Consumer electronics module connections
Automotive electronic sub-systems

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status and lead times directly with authorized distributors, as availability may vary. Confirm that the specific ordering suffix matches the required contact finish and housing color specifications. Ensure procurement channels are authorized to guarantee genuine components and access to current technical documentation.

Edgeboard Connectors Selection Notes

Select this connector for applications requiring a 50-position dual-edge interface with a standard 2.54 mm pitch. Verify compatibility with the mating card thickness and ensure the IDC termination method aligns with the assembly process. Consider the operating temperature range and environmental conditions when specifying the thermoplastic housing material.

Edgeboard Connectors Part Context

This component belongs to the CWR series of card edge connectors from CW Industries. It is designed for high-density interconnect solutions in various electronic assemblies. The series offers multiple position counts and termination options to support diverse board-to-board and cable-to-board connectivity requirements.
