CX-100.000MBE-T

Oscillators Overview

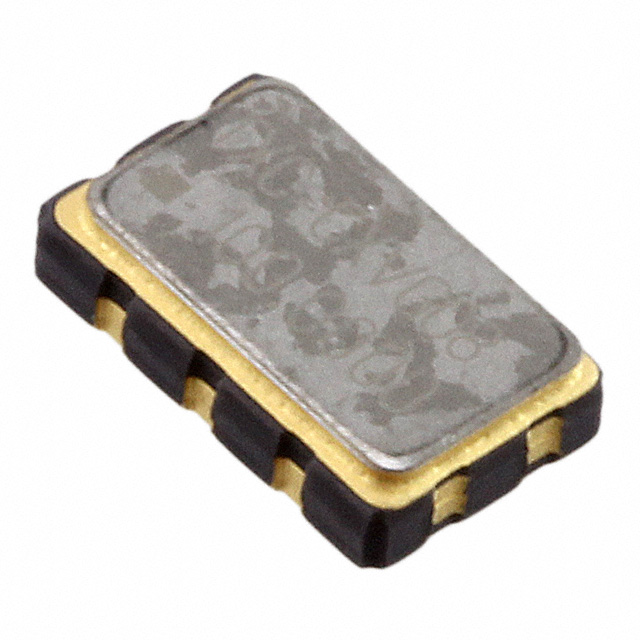

The CX-100.000MBE-T is a standard clock oscillator manufactured by TXC Corporation, designed for high-frequency timing applications. It operates at a nominal frequency of 100 MHz with a frequency stability of ±50 ppm. The device functions within a supply voltage range of 2.5 V to 3.3 V, typically utilizing a 3.3 V supply. It features an LVPECL output format and is housed in a compact 6-SMD, No Lead package. The component supports surface mount technology (SMD/SMT) and is rated for an extended operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• Provides precise 100 MHz clock signals with ±50 ppm stability
• Supports LVPECL output format for high-speed digital interfaces
• Operates on a single 3.3V power supply with wide voltage tolerance
• Designed for robust performance across industrial temperature ranges

Oscillators Applications

• High-speed data communication systems requiring stable clock sources
• Network infrastructure equipment such as routers and switches
• Digital signal processing circuits needing precise timing references
• Telecommunications base stations and transmission equipment

Oscillators Procurement Notes

Verify the specific package variant, as some sources indicate a 7x5mm form factor while others list 6-SMD No Lead. Confirm LVPECL output compatibility with target circuitry. Check current availability status as distribution channels may vary. Ensure the selected unit matches the required frequency stability and temperature rating for the intended environment.

Oscillators Selection Notes

Select this component when a 100 MHz clock with LVPECL outputs is required. Consider the ±50 ppm stability for applications sensitive to jitter. Evaluate the 3.3V supply requirement against system power rails. Compare physical dimensions against PCB layout constraints to ensure proper footprint compatibility.

Oscillators Part Context

This part belongs to TXC Corporation's standard clock oscillator series. It serves as a critical timing element in electronic designs where frequency accuracy is paramount. The model number indicates a 100 MHz frequency variant within the broader CX product line, offering a balance of performance and size for modern electronics.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer cross-reference guides or authorized distributors for compatible alternatives that match the electrical specifications and pinout configuration.
