CX-96F-040.000-E0107

Crystals Overview

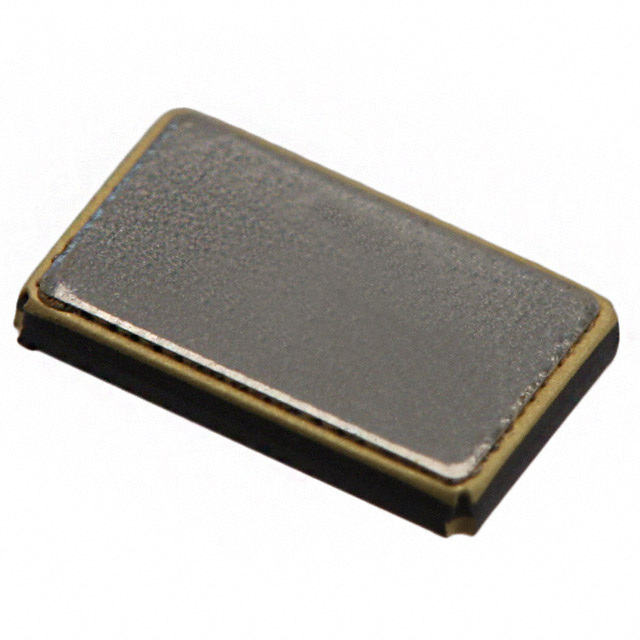

The CX-96F-040.000-E0107 is a surface-mount crystal oscillator manufactured by KYOCERA AVX, designed for precise timing applications. It operates at a nominal frequency of 40.0000 MHz with a load capacitance of 15 pF and an equivalent series resistance (ESR) of 25 Ω. The component exhibits a frequency stability of ±18 ppm and functions within an operating temperature range of 0°C to +85°C. Housed in a compact 4-SMD, no-lead package measuring 3.2mm x 2.5mm x 0.75mm or 0.85mm, it offers enhanced solderability suitable for automated assembly processes.

Crystals Feature Summary

• Compact low-profile ceramic package design
• Enhanced solderability for reliable surface mounting
• High frequency stability for precision timing

Crystals Applications

• Consumer electronics requiring stable clock signals
• Industrial equipment timing circuits
• Automotive infotainment systems

Crystals Procurement Notes

Verify the current production status before procurement as this specific part number may be discontinued or not recommended for new designs. Confirm package dimensions and lead availability through official distributors. Ensure compatibility with existing PCB footprints and reflow profiles. Request updated lifecycle documentation from KYOCERA AVX to avoid integration issues in long-term manufacturing plans.

Crystals Selection Notes

Select this component when a 40 MHz reference signal with ±18 ppm stability is required in a small form factor. Consider the 15 pF load capacitance requirement for circuit matching. Evaluate the ESR of 25 Ω against oscillator circuit requirements. Compare against newer series if higher stability or extended temperature ranges are needed for future-proofing designs.

Crystals Part Context

This crystal belongs to KYOCERA AVX's timing devices portfolio, which includes various resonators and oscillators for consumer, industrial, and automotive markets. The CX series typically features ceramic packages optimized for SMT processes. This specific model represents a standard frequency option within their broader lineup of surface-mount crystals.

Crystals Replacement Considerations

Check for direct substitutes within the CX series or newer KYOCERA AVX crystal families. Verify pinout compatibility and electrical parameter equivalence. Consult manufacturer obsolescence notices for recommended replacement part numbers.
