CX2016SA24000D0GSZC1

Crystals Overview

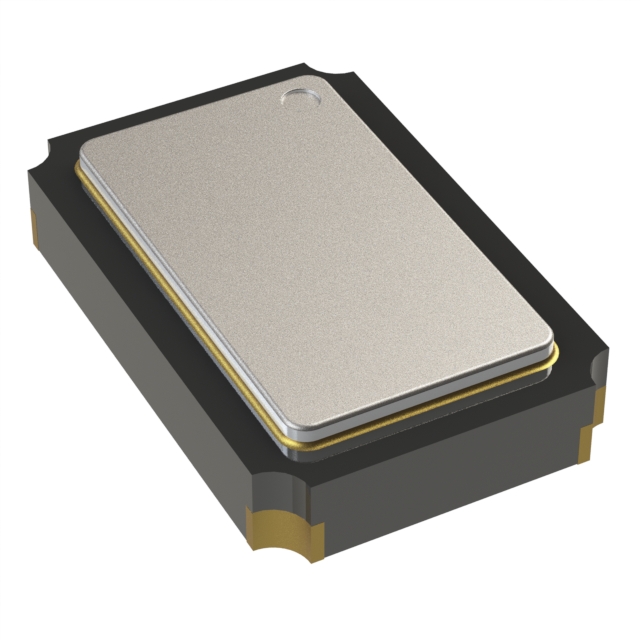

The CX2016SA24000D0GSZC1 is a surface-mount crystal unit manufactured by KYOCERA AVX. It operates at a fundamental frequency of 24 MHz with a load capacitance of 8 pF and a frequency tolerance of ±15 ppm. The component features an equivalent series resistance (ESR) of 120 Ohms and utilizes a ceramic package in the 2.05 mm x 1.65 mm x 0.45 mm footprint. Designed for automotive environments, it complies with AEC-Q200 standards and supports reflow soldering processes.

Crystals Feature Summary

• Complies with AEC-Q200 qualification standards for automotive reliability
• Utilizes a miniature ceramic package suitable for space-constrained designs
• Supports standard reflow soldering manufacturing processes

Crystals Applications

• Advanced Driver Assistance Systems (ADAS)
• Automotive Radar sensors
• In-vehicle Ethernet communication interfaces

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact electrical parameters match system requirements. Confirm that the ordering code corresponds to the correct packaging format and frequency stability specifications before finalizing procurement orders.

Crystals Selection Notes

Select this component when designing for automotive applications requiring high reliability and small form factors. Ensure the host circuit matches the 8 pF load capacitance requirement. Verify thermal management capabilities align with the specified operating temperature range for the target environment.

Crystals Part Context

This part belongs to the CX2016SA series, which provides platform-based solutions for automotive electronics. The series addresses the demand for miniaturization in modern vehicle electronic control units while maintaining strict quality standards required for safety-critical systems.

Crystals Replacement Considerations

Consult official substitution lists for compatible alternatives within the same series or from other qualified manufacturers. Ensure any replacement maintains identical frequency, load capacitance, and AEC-Q200 compliance.
