CX2520SB40000H0WZK06

Crystals Overview

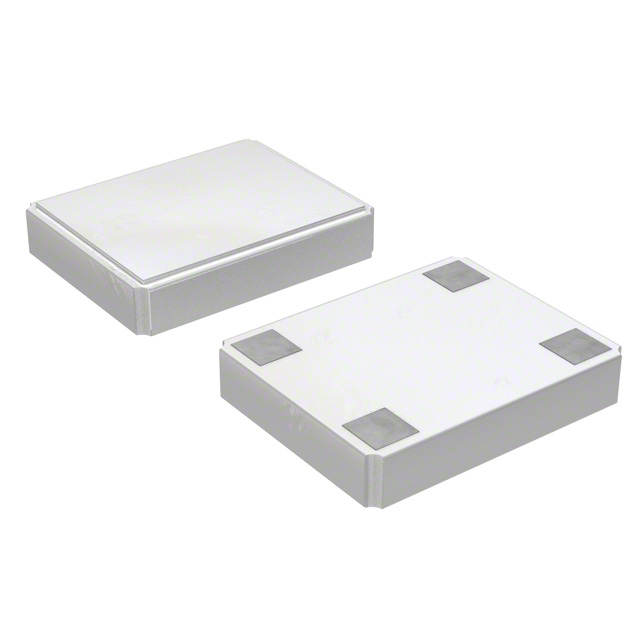

The CX2520SB40000H0WZK06 is a surface-mount quartz crystal manufactured by KYOCERA AVX. It operates at a fundamental frequency of 40 MHz with a load capacitance of 12 pF and an equivalent series resistance (ESR) of 50 Ohms. The component exhibits a frequency stability of ±18 ppm and functions within a temperature range of 0°C to 85°C. Its physical dimensions are 2.50 mm in length, 2.00 mm in width, and a maximum height of 0.55 mm, housed in a 4-SMD, no-lead package.

Crystals Feature Summary

• Fundamental mode operation for stable frequency generation
• Surface-mount design compatible with automated assembly processes
• Integrated thermistor functionality for thermal compensation

Crystals Applications

• Automotive electronic systems requiring AEC-Q200 compliance
• High-precision timing circuits in consumer electronics
• Embedded control modules in industrial equipment

Crystals Procurement Notes

Verify the specific suffix configuration against official KYOCERA AVX documentation to ensure correct electrical parameters and packaging specifications. Confirm that the requested part matches the required frequency tolerance and load capacitance for the target circuit design. Cross-reference the manufacturer's latest datasheet to validate current production status and availability constraints before finalizing procurement orders.

Crystals Selection Notes

Select this component when a compact 40 MHz reference is needed for space-constrained designs. Ensure the system load capacitance aligns with the specified 12 pF requirement to maintain accuracy. Consider the operating temperature range and ESR limits relative to the oscillator circuit capabilities. Verify compatibility with the intended surface-mount reflow soldering profile during the design phase.

Crystals Part Context

This model belongs to the CX2520SB series of surface-mount crystals from KYOCERA AVX. The series is characterized by small form factors suitable for modern PCB layouts. Components in this line typically support automotive reliability standards, providing consistent performance across varying environmental conditions while maintaining low profile requirements for dense electronic assemblies.

Crystals Replacement Considerations

Direct substitutes must match the 40 MHz frequency, 12 pF load capacitance, and 4-SMD package dimensions. Verify equivalent ESR values and frequency stability ratings to ensure circuit compatibility. Consult the manufacturer's cross-reference guide for approved alternative part numbers with identical electrical characteristics.
