CX3225GA28636H0HPQCC

Crystals Overview

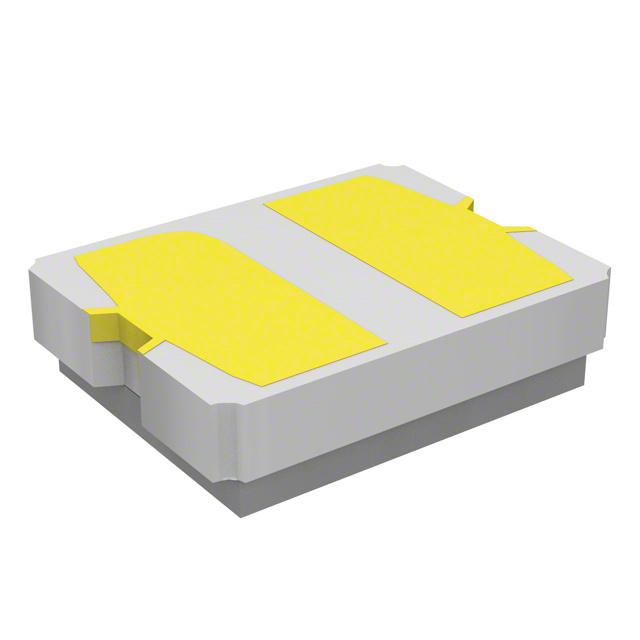

The KYOCERA AVX CX3225GA28636H0HPQCC is a surface-mount quartz crystal resonator operating at a fundamental frequency of 28.636 MHz. It features a load capacitance of 12 pF and is housed in a compact 3.2 mm x 2.5 mm x 0.85 mm package. The component supports an extended operating temperature range from -40°C to +150°C, ensuring stability in high-heat environments. Key electrical specifications include a frequency tolerance of ±20 ppm, frequency stability of ±150 ppm, equivalent series resistance (ESR) of 100 ohms, and a drive level of 10 uW.

Crystals Feature Summary

• Integrated thermistor for precise temperature monitoring and compensation
• High-temperature operational capability up to 150°C
• AEC-Q200 automotive qualification for reliability standards

Crystals Applications

• Automotive engine control units requiring high thermal stability
• Industrial equipment operating in extreme temperature conditions
• High-reliability communication systems with strict timing requirements

Crystals Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required load capacitance and tolerance levels. Confirm that the AEC-Q200 certification status aligns with target application regulations. Check for any recent product change notices regarding material composition or manufacturing location updates prior to finalizing procurement orders.

Crystals Selection Notes

Select this component when applications demand operation beyond standard industrial temperature ranges, specifically up to 150°C. The integrated thermistor feature distinguishes it from standard crystals, allowing for active thermal management. Ensure the circuit design accommodates the 12 pF load capacitance and 10 uW drive level to prevent frequency drift or crystal damage during operation.

Crystals Part Context

This part belongs to the CX3225GA series of KYOCERA AVX, which specializes in ultra-compact, high-temperature quartz crystals. Unlike the CX3225GB series which focuses on general consumer electronics, the GA series is engineered for harsh environments. It shares the same 3.2x2.5mm footprint as other series members but offers superior thermal endurance and automotive-grade validation.

Crystals Replacement Considerations

Direct substitutes within the same family include CX3225GA28636D0HPQCC if tighter frequency stability is not required. For non-automotive applications, the CX3225GB28636H0HPQCC may be considered if the 150°C maximum operating temperature is not critical. Verify pinout and dimensional compatibility before swapping.
