CX3225GB19200D0HEQZ1

Crystals Overview

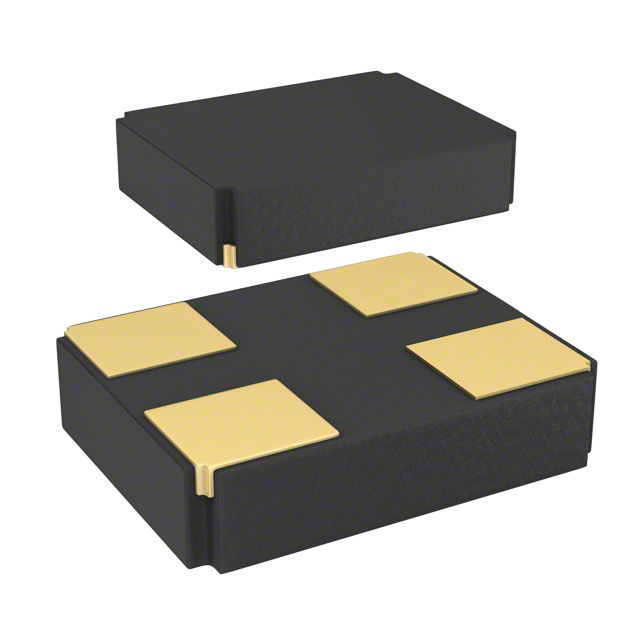

The CX3225GB19200D0HEQZ1 is a surface-mount quartz crystal manufactured by KYOCERA AVX. It operates at a nominal frequency of 19.2 MHz with an 8 pF load capacitance. The component features a ±20 ppm tolerance and ±30 ppm frequency stability. It has a maximum equivalent series resistance (ESR) of 80 Ohms and supports a drive level of 10 uW. The package dimensions are 3.2 mm x 2.5 mm x 0.8 mm, designed for SMD/SMT mounting. The operating temperature range spans from -40°C to +85°C.

Crystals Feature Summary

• Integrated thermistor functionality for temperature compensation
• Standard 4-SMD, no-lead package configuration
• Compliant with RoHS3 specifications

Crystals Applications

• General-purpose clock signal generation in electronic circuits
• Microcontroller system timing references
• Communication interface synchronization

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm the presence of the integrated thermistor and exact electrical parameters. Ensure that the selected variant matches the required load capacitance and frequency stability specifications for the target application circuit design.

Crystals Selection Notes

Select this component when a standard 19.2 MHz frequency point is required alongside thermal monitoring capabilities. The 80 Ohm ESR limit and 10 uW drive level must align with the oscillator circuit design to ensure stable startup and operation within the specified industrial temperature range.

Crystals Part Context

This part belongs to the CX3225GB series of surface-mount crystals from KYOCERA AVX. The series provides various frequency options within a compact 3.2mm x 2.5mm footprint. The GB designation typically indicates the inclusion of a built-in thermistor for enhanced thermal management in precision applications.

Crystals Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation.
