CX3225SB24576H0FLJCC

Crystals Overview

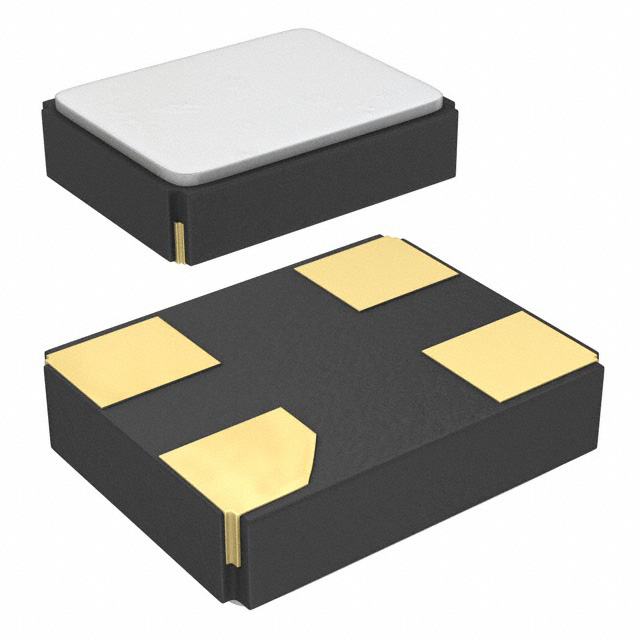

The KYOCERA AVX CX3225SB24576H0FLJCC is a surface-mount piezoelectric crystal operating at a nominal frequency of 24.576 MHz. It features a load capacitance of 12 pF and an equivalent series resistance (ESR) of 50 Ohms. The component exhibits a frequency tolerance of ±10 ppm and a stability of ±15 ppm. Designed for the -30°C to +85°C industrial temperature range, it utilizes a compact 3.2 mm x 2.5 mm x 0.95 mm package with SMD/SMT termination.

Crystals Feature Summary

• Certified to AEC-Q200 automotive reliability standards
• RoHS3 compliant lead-free construction
• Moisture Sensitivity Level 1 (MSL1) classification

Crystals Applications

• Automotive electronic systems
• Industrial control equipment
• Communication modules

Crystals Procurement Notes

Verify that the specific suffix 'H' in the part number corresponds to the required 12 pF load capacitance specification. Confirm that the 0.95 mm maximum height aligns with the assembly profile constraints. Ensure the ordering documentation explicitly references the AEC-Q200 qualification status for automotive compliance requirements.

Crystals Selection Notes

Select this component when a 24.576 MHz reference is required for automotive or industrial applications. The 12 pF load capacitance must match the oscillator circuit design. Consider the 50 Ohm ESR value for impedance matching. Verify the 0.95 mm height against board clearance restrictions.

Crystals Part Context

This model belongs to the CX3225SB series of surface-mount crystals from KYOCERA AVX. The series provides standard frequencies for timing circuits. The 3225 package size offers a balance between footprint reduction and performance stability compared to smaller packages.

Crystals Replacement Considerations

Cross-reference other manufacturers offering 24.576 MHz crystals with 12 pF load capacitance and 50 Ohm ESR. Verify that substitute components meet the same AEC-Q200 automotive qualification standards and maintain identical physical dimensions.
