CX325Z-A5B2C5-50-20.0D18

Crystals Overview

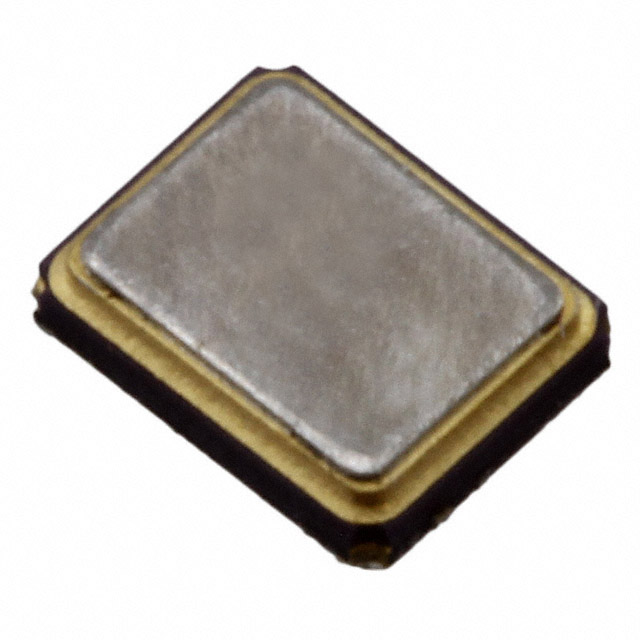

The CX325Z-A5B2C5-50-20.0D18 is a parallel fundamental quartz crystal resonator manufactured by Cardinal Components Inc. It operates at a nominal frequency of 20 MHz with a load capacitance of 18 pF and an equivalent series resistance of 50 Ohms. The device features a frequency stability of ±20 ppm and a tolerance of ±30 ppm, ensuring precise timing performance. Designed for surface mount applications, it utilizes a compact 4-SMD ceramic package measuring 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height. The component supports tape and reel packaging and complies with RoHS standards.

Crystals Feature Summary

• Surface mount design utilizing a compact 3.2x2.5mm ceramic package
• Parallel fundamental mode operation for stable oscillation
• Tape and reel packaging configuration for automated assembly

Crystals Applications

• Communication equipment timing circuits
• Automotive electronic systems
• Medical instrumentation devices
• Wireless Bluetooth modules

Crystals Procurement Notes

Verify the specific ordering suffix to confirm package type and stability ratings. Ensure the load capacitance matches the circuit requirements. Confirm RoHS compliance status if required by project specifications. Check manufacturer datasheets for exact electrical parameters before integration.

Crystals Selection Notes

Select this component for applications requiring a 20 MHz reference with high stability. Consider the 18 pF load capacitance when designing oscillator circuits. Evaluate the operating temperature range against environmental conditions. Compare physical dimensions against available PCB space constraints.

Crystals Part Context

This part belongs to the CX325 series of surface mount crystals from Cardinal Components. The series offers various frequency options and stability grades within a standardized small footprint. It serves as a reliable timing source for modern electronic designs requiring precision frequency generation.

Crystals Replacement Considerations

Direct substitutes include CSM1Z-A5B2C5-50-20.0D18 and HCM4920000000A. Verify pin compatibility and electrical parameters before substitution.
