CX5Z-A1B2C5-40-24.0D18

Crystals Overview

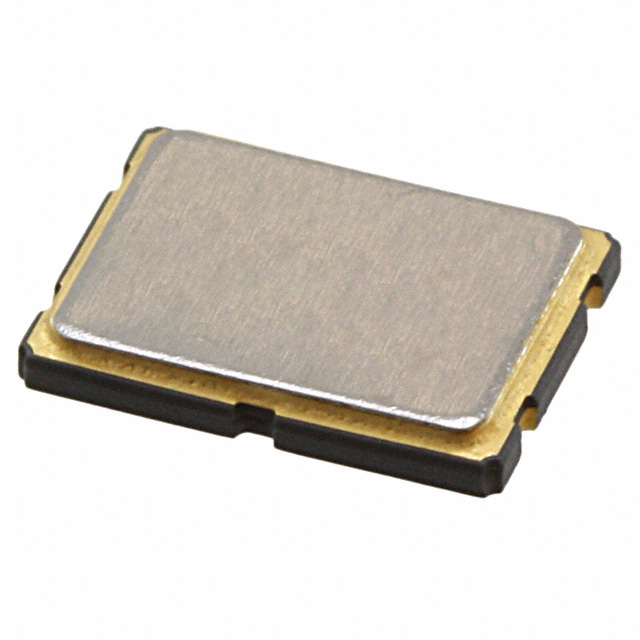

The CX5Z-A1B2C5-40-24.0D18 is a fundamental series quartz crystal resonator manufactured by Cardinal Components Inc. It operates at a nominal frequency of 24.0 MHz with a frequency tolerance of ±20 ppm and a frequency stability of ±50 ppm. The component features a load capacitance of 18 pF and an equivalent series resistance (ESR) of 40 Ohms. Designed for surface mount applications, it utilizes a 4-SMD, no-lead package with dimensions of 7.00 mm x 5.00 mm x 1.40 mm. The device supports an operating temperature range of -10°C to +70°C and complies with RoHS3 standards.

Crystals Feature Summary

• Surface mount ceramic package construction
• Fundamental series resonance mode operation
• RoHS3 compliant lead-free manufacturing

Crystals Applications

• Automotive hybrid, electric, and powertrain systems
• General communication equipment
• Consumer electronics and wireless devices

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact electrical parameter alignment. Confirm that the ordering code matches the required frequency tolerance and stability specifications for the target application. Cross-reference the package outline drawing to validate physical footprint compatibility during PCB layout design.

Crystals Selection Notes

Select this component when a 24 MHz fundamental series crystal is required in a compact 7.0x5.0mm SMD form factor. Ensure the circuit design accommodates the specified 18 pF load capacitance and 40 Ohm ESR. Verify that the operational environment remains within the -10°C to +70°C temperature range defined for the A1 operating temperature code.

Crystals Part Context

This part belongs to the CX5 series of ceramic surface mount crystals from Cardinal Components Inc. The series offers various size options and frequency ranges, typically spanning 7.3728 MHz to 48.000 MHz. The CX5Z variant specifically denotes tape and reel packaging availability, distinguishing it from bulk pack configurations within the same family.

Crystals Replacement Considerations

Publicly confirmed substitute part numbers include ABM3B-24.0MHZ-B2-T and ABLS-24.000MHZ-B2-T. These alternatives offer similar electrical characteristics and package dimensions but may require verification of drive level and aging specifications.
