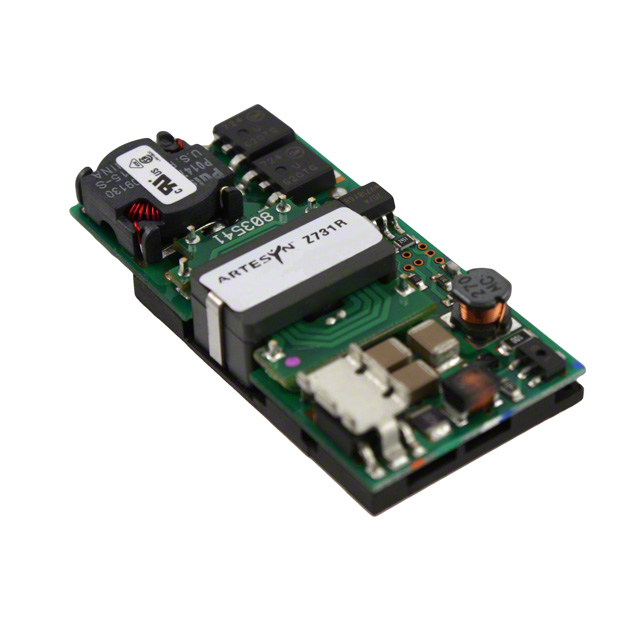

CXA10-48S12J

CXA10-48S12J is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 12V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CXA10-48S12J

• Description：DC DC CONVERTER 12V 10W
• Series：CXA10 (10W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：830mA
• Power (Watts)：10 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 70°C
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CXA10-48S12J
