CY11.05LP

Overview

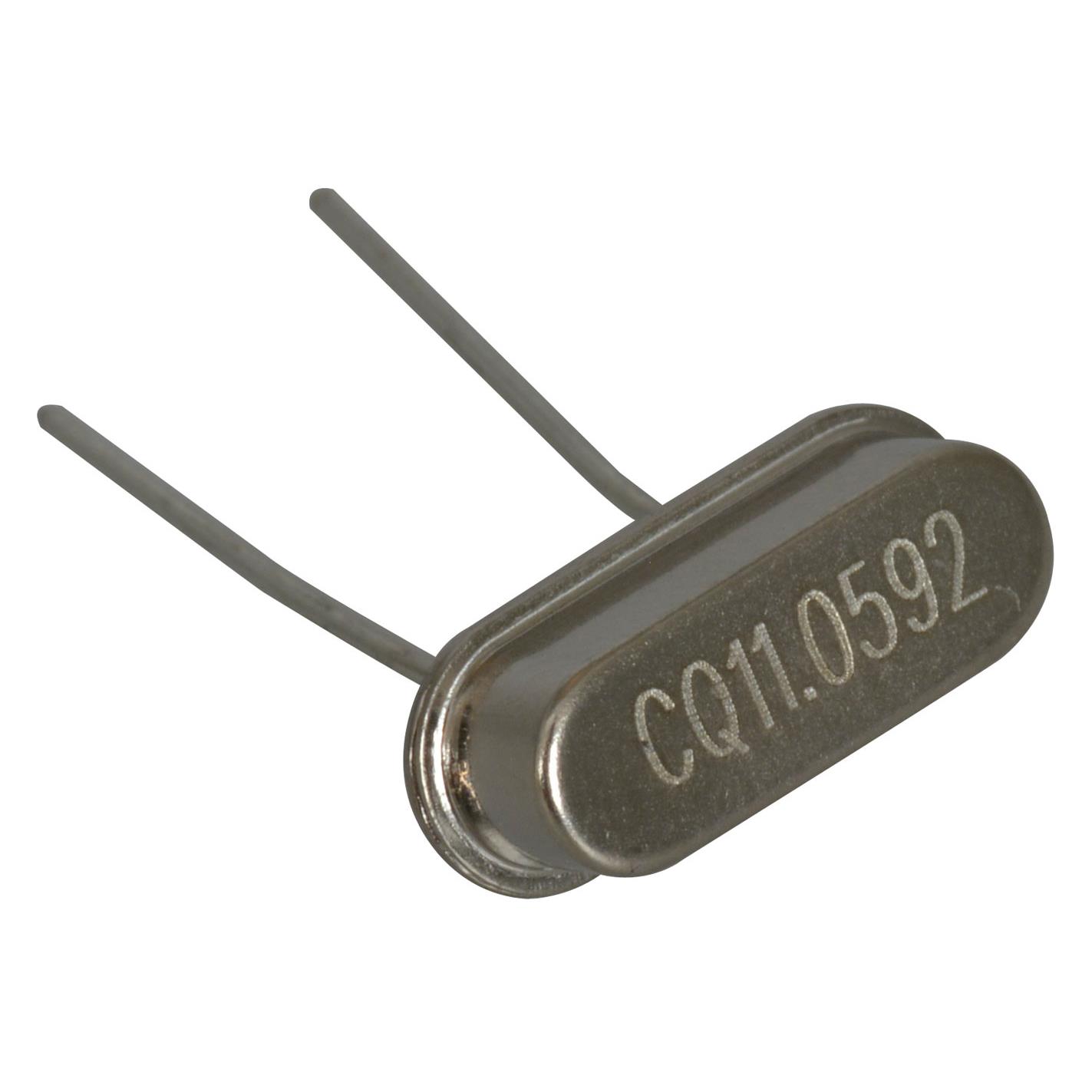

The Jameco Valuepro CY11.05LP is a ceramic resonator or crystal oscillator component operating at a nominal frequency of 11.0592 MHz. It features a tolerance of 50 ppm and utilizes the HC49-S package style, which is a standard through-hole metal can housing for discrete frequency control devices. This specific part number identifies the electrical and mechanical specifications provided by the Jameco Valuepro private label line.

Feature Summary

• Provides stable frequency generation at 11.0592 MHz
• Encased in a durable HC49-S metal can package
• Maintains frequency accuracy within 50 ppm tolerance

Applications

• Microcontroller clock sources requiring precise timing
• Serial communication interfaces needing standard baud rate frequencies
• Embedded system timing references

Procurement Notes

Verify the exact datasheet parameters against your circuit requirements before procurement. Confirm that the HC49-S package dimensions match your PCB footprint. Ensure the 50 ppm tolerance meets your system's timing accuracy needs. Check for any specific mounting orientation requirements if applicable to your design constraints.

Selection Notes

Select this component when a standard 11.0592 MHz reference is required for serial communications or microcontroller operations. The HC49-S package offers robust mechanical stability for through-hole assembly. Consider the 50 ppm tolerance as sufficient for most general-purpose digital logic applications where high-precision oscillators are not mandatory.

Part Context

This component belongs to the Jameco Valuepro (JVP) private label series, which provides cost-effective electronic components for engineers and hobbyists. The CY11.05LP designation specifically identifies the 11.0592 MHz variant within this broader catalog of passive and active components distributed by Jameco Electronics.

Replacement Considerations

Compatible substitutes include other 11.0592 MHz crystals or ceramic resonators in the HC49-S package with similar tolerance ratings. Verify equivalent load capacitance and drive level specifications when cross-referencing alternative manufacturers' parts to ensure circuit performance remains unchanged.
