CY74FCT2374ATQCT

Overview

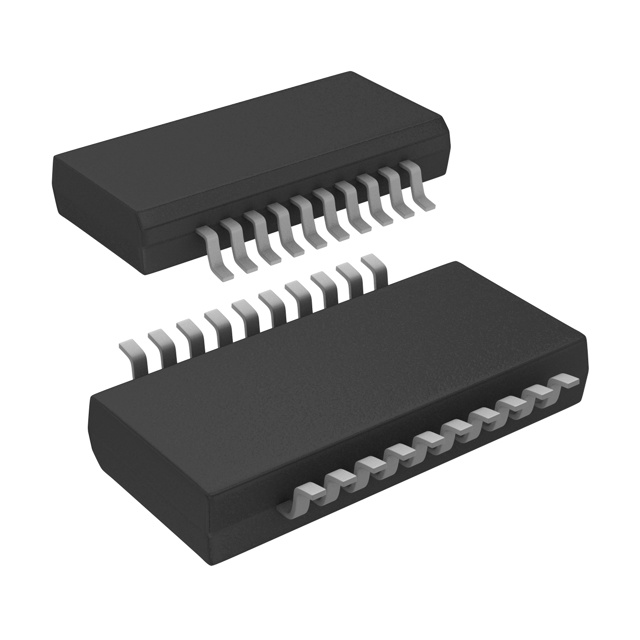

The CY74FCT2374ATQCT is an octal D-type flip-flop manufactured by Texas Instruments, featuring positive-edge triggering and tri-state outputs. It belongs to the FCT logic series with TTL-compatible inputs. The device operates within a supply voltage range of 4.75 V to 5.25 V and supports surface-mount installation in a 20-pin SSOP package. It functions as a non-inverting register with eight independent circuits, designed for high-speed data storage applications.

Feature Summary

• Positive-edge triggered D-type flip-flop architecture
• Tri-state output capability for bus interfacing
• TTL-compatible input levels for system integration

Applications

• Parallel data storage registers
• Bus interface buffering
• Digital signal processing systems

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm package integrity and moisture sensitivity handling requirements prior to assembly. Ensure ordering suffixes match specific tape-and-reel or cut-tape configurations required for automated placement processes.

Selection Notes

Select this component when designing systems requiring octal data latching with tri-state control. Consider the FCT series speed and CMOS power characteristics relative to standard logic families. Evaluate thermal performance and PCB layout constraints associated with the SSOP package dimensions.

Part Context

This part is part of the CY74FCT374T family, representing Texas Instruments' Fast CMOS Technology line. It provides enhanced switching speeds compared to older logic families while maintaining low power consumption. The device serves as a fundamental building block for sequential logic circuits in digital electronics.

Replacement Considerations

CY74FCT374ATQCT
