CY74FCT823ATQCT

Overview

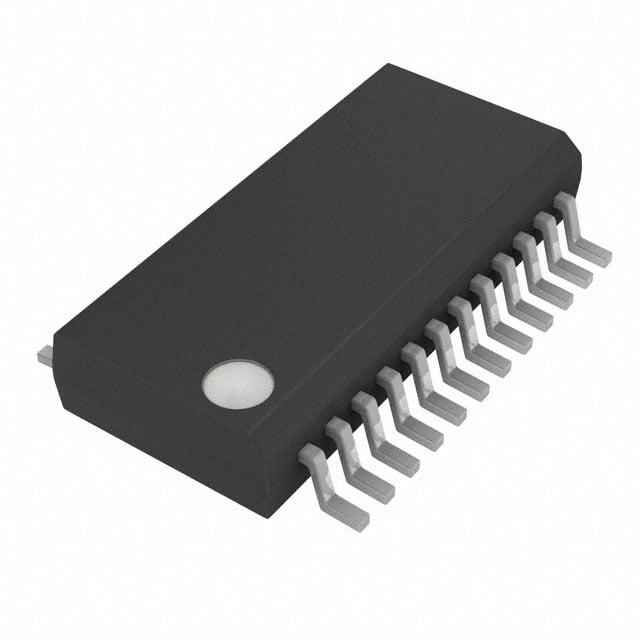

The CY74FCT823ATQCT is a nine-bit D-type flip-flop bus driver manufactured by Texas Instruments, belonging to the FCT logic series. It features tri-state, non-inverted outputs and accepts TTL input levels. The device operates within a supply voltage range of 4.75 V to 5.25 V and supports surface mount installation in a 24-pin SSOP or QSOP package. It exhibits a maximum propagation delay of 12.5 ns at 5 V with a 300 pF load and maintains an operating temperature range from -40 °C to +85 °C.

Feature Summary

• Integrates nine D-type flip-flops configured as a bus driver with master reset functionality.
• Provides tri-state, non-inverting output capability for efficient data bus management.
• Ensures high-speed signal transmission with low propagation delay characteristics.

Applications

• High-performance data bus buffering and driving applications
• Clocked memory interface circuits requiring reliable data latching
• General-purpose digital logic systems utilizing TTL-compatible inputs

Procurement Notes

Verify the specific suffix against official documentation to confirm package type and tape/reel specifications. Ensure the component matches the required moisture sensitivity level and lead-free status for your assembly process. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and authenticity before procurement.

Selection Notes

Select this component when a nine-bit width is required for bus drivers with registered outputs. Consider the FCT series compatibility with existing TTL logic families. Evaluate the 24-pin SSOP/QSOP footprint constraints against available PCB space. Confirm that the 12.5 ns delay meets system timing requirements under expected capacitive loads.

Part Context

This device belongs to the CY74FCT family of fast CMOS logic components designed for high-speed digital applications. The FCT series bridges the performance gap between standard TTL and advanced CMOS technologies. This specific model provides registered bus driving capabilities essential for synchronous data transfer architectures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-references through official Texas Instruments substitution guides or authorized distributor databases for equivalent FCT series components.
