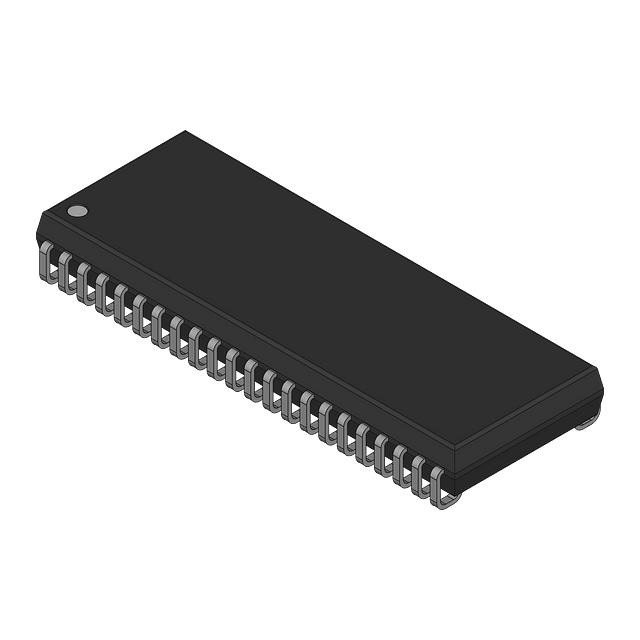

CY7C1020B-12VC

$2.08

Description：IC SRAM 512KBIT PARALLEL 44SOJ
Series：-
Mfr：Cypress Semiconductor Corp
Package：Bulk

SKU:67ee49d14ee2 Category: Memory IC Brand: Cypress Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CY7C1020B-12VC is listed in the Memory IC range at ChipApex. The manufacturer field lists Cypress Semiconductor Corp. Its product description is IC SRAM 512KBIT PARALLEL 44SOJ. Review the specifications below when checking this part for your BOM.

Memory IC specifications for CY7C1020B-12VC

Description：IC SRAM 512KBIT PARALLEL 44SOJ
Series：-
Mfr：Cypress Semiconductor Corp
Package：Bulk
Memory Type：Volatile
Memory Format：SRAM
Technology：SRAM - Asynchronous
Memory Size：512Kbit
Memory Organization：32K x 16
Memory Interface：Parallel
Clock Frequency：-
Write Cycle Time - Word, Page：12ns
Voltage - Supply：4.5V ~ 5.5V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：44-BSOJ (0.400", 10.16mm Width)
Supplier Device Package：44-SOJ
Access Time：12 ns

Memory IC datasheet and documents for CY7C1020B-12VC

CY7C1020B-12VC

Memory IC Overview

The CY7C1020B-12VC is a 32K x 16 Static RAM (SRAM) manufactured by Cypress Semiconductor Corp. It features an asynchronous parallel interface with a maximum access time of 12 ns. The device operates within a supply voltage range of 4.5V to 5.5V and supports surface-mount installation in a 44-pin SOJ package.

Memory IC Feature Summary

Asynchronous static random-access memory architecture
Parallel data interface for direct system connection
CMOS technology implementation

Memory IC Applications

General-purpose volatile memory storage
Buffering applications in digital systems
Cache memory implementations

Memory IC Procurement Notes

Verify the specific suffix 'VC' against the manufacturer's official datasheet to confirm pinout, package dimensions, and electrical characteristics. Ensure compatibility with existing board layouts and power supply specifications before procurement.

Memory IC Selection Notes

Select this component when a 32K x 16 capacity is required with 12 ns speed performance. Consider the 4.5V to 5.5V operating range and 44-SOJ package constraints during design integration.

Memory IC Part Context

This part belongs to the CY7C1020 family of high-speed SRAMs. It shares architectural similarities with other variants in the series but differs in speed grade and packaging options. The 'B' suffix typically denotes a specific generation or revision within the product line.
