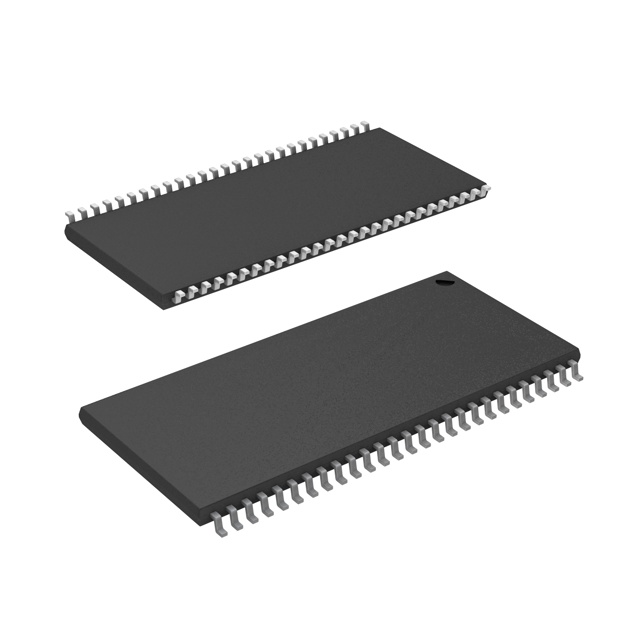

CY7C1061GE18-15ZSXIT is listed in the Memory IC range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC SRAM 16MBIT PAR 54TSOP II. Review the specifications below when checking this part for your BOM.
Memory IC specifications for CY7C1061GE18-15ZSXIT
- Description：IC SRAM 16MBIT PAR 54TSOP II
- Series：-
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR)
- Memory Type：Volatile
- Memory Format：SRAM
- Technology：SRAM - Asynchronous
- Memory Size：16Mbit
- Memory Organization：1M x 16
- Memory Interface：Parallel
- Clock Frequency：-
- Write Cycle Time - Word, Page：15ns
- Voltage - Supply：1.65V ~ 2.2V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：54-TSOP (0.400", 10.16mm Width)
- Supplier Device Package：54-TSOP II
- Access Time：15 ns
Memory IC datasheet and documents for CY7C1061GE18-15ZSXIT
Memory IC Overview
The Infineon CY7C1061GE18-15ZSXIT is a 16-Mbit (1 M words × 16-bit) asynchronous static RAM featuring embedded single-bit error correction. It operates within a voltage range of 1.65 V to 2.2 V and provides an access time of 15 ns. The device utilizes a 54-pin TSOP II package with dual chip enables and includes an ERR pin for error indication.
Memory IC Feature Summary
- Embedded ECC logic for automatic single-bit error detection and correction
- ERR output pin signals detected and corrected single-bit errors during read cycles
- Dual chip enable configuration for flexible system integration
Memory IC Applications
- Industrial systems requiring high data integrity
- Memory subsystems utilizing low-voltage power supplies
- Applications necessitating hardware-level error correction
Memory IC Procurement Notes
Verify the specific suffix ZSXIT confirms the 54-pin TSOP II package, dual chip enable architecture, and inclusion of the ERR pin. Confirm the '18' designation matches the required 1.65 V to 2.2 V operating voltage range. Ensure the '15' speed grade aligns with the 15 ns access time requirement for the target design.
Memory IC Selection Notes
Select this component when a 16-Mbit capacity with integrated ECC is required in a low-voltage environment. The dual chip enable option offers greater control flexibility compared to single-enable variants. Verify that the 54-pin TSOP II footprint fits the PCB layout constraints and that the 15 ns speed meets the system timing requirements.
Memory IC Part Context
This part belongs to the CY7C1061G/CY7C1061GE family of fast asynchronous SRAMs. The GE variant specifically distinguishes itself by including the ERR pin for error signaling, whereas the G variant omits it. This family supports multiple voltage ranges and packages, with the GE18-15ZSXIT representing the low-voltage, 15 ns, TSOP II configuration.
Memory IC Replacement Considerations
CY7C1061GE18-15ZSXI is a direct equivalent offering identical specifications without tape and reel packaging.
