CY7C1383F-133BZI

Memory IC Overview

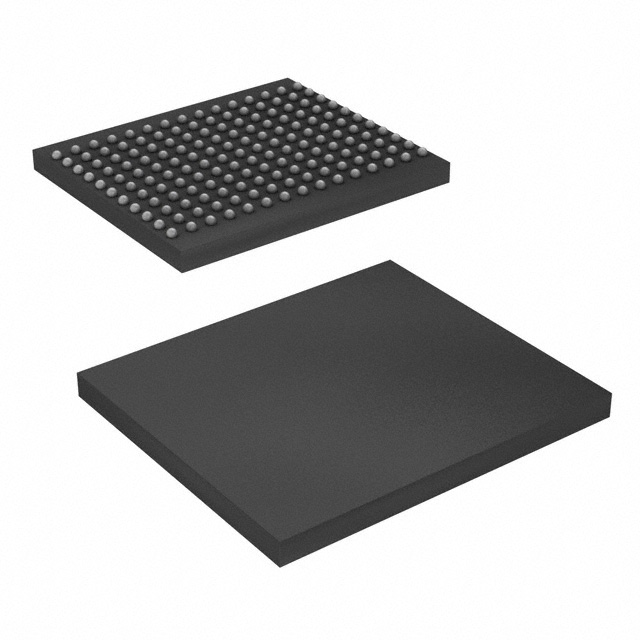

The CY7C1383F-133BZI is a 18 Mbit Synchronous SRAM with ECC, organized as 1M x 18. It operates at a maximum clock frequency of 133 MHz with a read latency of one cycle. The device supports a supply voltage range of 3.135 V to 3.6 V and functions within an industrial temperature range of -40 °C to 85 °C. It utilizes a parallel interface and features a flow-through architecture without on-die termination. The component is housed in a 165-ball FBGA package.

Memory IC Feature Summary

• Integrated Error Correction Code (ECC) logic for data integrity
• Flow-through architecture enabling continuous data streaming
• Synchronous operation with single-cycle read latency

Memory IC Applications

• High-speed networking equipment requiring error correction
• Industrial control systems demanding reliability
• Telecommunications infrastructure memory buffers

Memory IC Procurement Notes

Verify the specific suffix 'F' against official Infineon documentation to confirm package type and pinout compatibility before procurement. Ensure the ordering part number matches the required speed grade and temperature rating. Confirm current availability status directly with authorized distributors or the manufacturer, as lifecycle stages may affect long-term supply continuity.

Memory IC Selection Notes

Select this component when system requirements demand synchronous SRAM with built-in ECC capabilities for critical data applications. The 133 MHz performance and 18-bit data width suit high-bandwidth interfaces. Verify that the 165-ball FBGA package fits the PCB layout constraints and that the 3.3V power domain aligns with the system design specifications.

Memory IC Part Context

This part belongs to the CY7C1383 series of 18-Mbit Synchronous SRAMs with ECC. It shares architectural similarities with other variants like the CY7C1383KV33 but differs in package and potentially speed binning. The series is designed for robust performance in industrial environments, offering a balance of density and speed for complex embedded applications.

Memory IC Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing with the official datasheet for the CY7C1383 family is recommended to identify compatible alternatives with matching pinouts and electrical characteristics.
